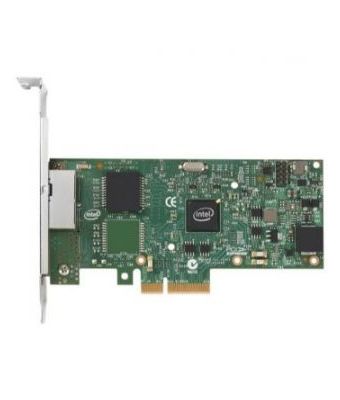

Intel I350T2V2BLK networking card Ethernet 1000 Mbit/s Internal

Internal

Yes

PCI version

2.1

Ethernet LAN (RJ-45) ports

2

Interface

Ethernet

Host interface

PCI Express

Connectivity technology

Wired

Full duplex

Yes

Maximum data transfer rate

1000 Mbit/s

Chipset

Intel® I350

Ethernet LAN

Yes

Cabling technology

10/100/1000BaseT(X)

Networking standards

IEEE 802.1as-IEEE 802.1Q-IEEE 802.3-IEEE 802.3ab-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z

Supported network protocols

TCP- UDP- IP

Maximum operating distance

100 m

LAN controller

Intel® I350

Full duplex

Yes

Ethernet LAN data rates

1000 Mbit/s

Maximum data transfer rate

1000 Mbit/s

Interface type

PCIe v2.1 (5.0 GT/s)

Storage-over-ethernet

Yes

Speed & slot width

5.0 GT/s- x4 Lane

PCI-SIG* SR-IOV Capable

Yes

PCI Card form factor

Full-height (low-profile)

On-chip QoS and Traffic Management

Yes

Low halogen options available

No

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Ethernet Power Management

Yes

Storage Over Ethernet

iSCSI- NFS

Harmonized System (HS) code

8517620090

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Thermal Design Power (TDP)

4.4 W

Product type

Network Interface Card

Processor family

Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)

Status

Launched

Product brief URL

http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350

Network interface card type

Server

Network interface card cable medium

Copper

Market segment

Server

Launch date

Q3'14

Last change

63903513

Supported network protocols

TCP- UDP- IP

Product family

Intel Gigabit server adapter

Product series

Intel® I350

Product codename

Powerville

Chipset

Intel® I350

Internal

Yes

PCI Card form factor

Full-height (low-profile)

Component for

Server

Ethernet adapter ARK ID

84804

Storage-over-ethernet

Yes

Speed & slot width

5.0 GT/s- x4 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Ethernet Power Management

Yes

Power consumption (typical)

5 W

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

35 - 90%

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Width

68.9 mm

Depth

135.4 mm

Thermal Design Power (TDP)

4.4 W

Product type

Network Interface Card

Processor family

Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)

Ethernet adapter ARK ID

84804

Interface type

PCIe v2.1 (5.0 GT/s)

Chipset

Intel® I350

Cable type

Cat 5 up to 100m

Storage-over-ethernet

Yes

Speed & slot width

5.0 GT/s- x4 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

Low halogen options available

No

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Ethernet Power Management

Yes

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Storage Over Ethernet

iSCSI- NFS

Status

Launched

Product brief URL

http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350

Network interface card type

Server

Network interface card cable medium

Copper

Market segment

Server

Launch date

Q3'14

Last change

63903513

Product family

Intel Gigabit server adapter

Product series

Intel® I350

Product codename

Powerville

Harmonized System (HS) code

8517620090

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Controller type

Intel I350

Cabling type

Cat 5 up to 100m

Bracket height

Low-Profile (LP) / Full-Height (FH)
