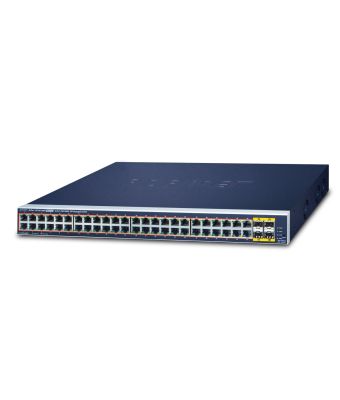

Cablenet 48 Port Managed 802.3at PoE+ Giga Switch + 4 Port 100/1000X SFP (440w)
|
Out of Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Reset button
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L4
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
48
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
10000
Throughput
77.38 Mpps
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Technical details
Form factor
1U
Product colour
Blue
Housing material
Metal
Firmware upgradeable
Yes
Rack mounting
Yes
Optical fiber
Fiber ethernet cabling technology
100BASE-FX, 1000BASEâLX, 1000BASEâSX
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Port-based authentication
Security algorithms
802.1x RADIUS, HTTPS, SSH, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Protocols
Management protocols
web, telnet, SNMP
Supported network protocols
IPv4 / IPv6
Certificates
Certification
FCC, CE, LVD
Design
Reset button
Yes
Form factor
1U
Product colour
Blue
LED indicators
Yes
Housing material
Metal
Certification
FCC, CE, LVD
Rack mounting
Yes
Number of fans
3 fan(s)
Performance
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Indication
LED indicators
Yes
Power
Power consumption (max)
481 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
36 W
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
400 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
1534 BTU/h
Weight & dimensions
Width
440 mm
Depth
300 mm
Height
44.5 mm
Weight
4.69 kg
Cablenet 48 Port Managed 802.3at PoE+ Giga Switch + 4 Port 100/1000X SFP (440w)
