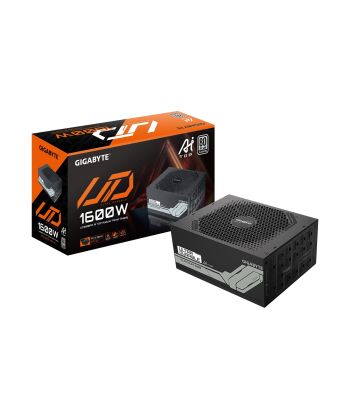

GIGABYTE UD1600PM PG5 AI TOP power supply unit 1600 W 20+4 pin ATX ATX Black
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Platinum
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
100000 h
Bearing technology
DBB
Design
80 PLUS certification
80 PLUS Platinum
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
1600 W
Power Good signal delay range
100 - 150 ms
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 7.5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
150 W
Combined power (+12V)
1600 W
Combined power (+5V)
150 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
17.5 W
Max output current (+3.3V)
30 A
Max output current (+12V)
133.3 A
Max output current (+5V)
30 A
Max output current (-12V)
0.8 A
Max output current (+5Vsb)
3.5 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time
16 ms
Efficiency
92%
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
150,650 mm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
16
Peripheral (Molex) power connectors (4-pin)
6
PCI Express power connectors (6+2 pin)
8
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
EPS power connector (4+4 pin)
Yes
Weight & dimensions
Width
150 mm
Depth
190 mm
Height
86 mm
Weight
5.3 kg
Packaging data
Package depth
219 mm
Package width
410 mm
Package height
145 mm
Package type
Box
Package weight
5.58 kg
Technical details
Warranty period
10 year(s)
Certificates
80 PLUS certification
80 PLUS Platinum
Logistics data
Warranty period
10 year(s)
GIGABYTE UD1600PM PG5 AI TOP power supply unit 1600 W 20+4 pin ATX ATX Black
| Length | 41 cm |
| Width | 21.9 cm |
| Height | 14.5 cm |
| Weight | 5.580000 kgs |
