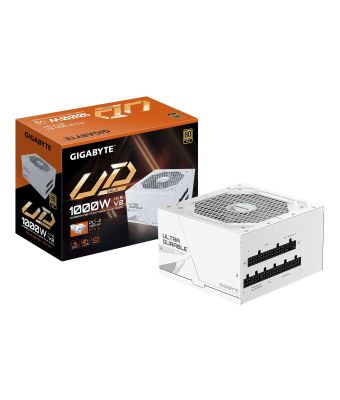

GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
100000 h
Bearing technology
HYB
Design
80 PLUS certification
80 PLUS Gold
Product colour
White
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Cooling type
Active
Power
Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 6.5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time
16 ms
Efficiency
90%
Ports & interfaces
Motherboard power cable length
61 cm
PCI Express power cable length
60 cm
CPU power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
Floppy drive power connector
1
Cabling type
Fully-Modular
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (12+4 pin) cable length
700 mm
Number of EPS connectors
2
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
2.48 kg
Packaging data
Package depth
269 mm
Package width
618 mm
Package height
211 mm
Package type
Box
Package weight
2.64 kg
Technical details
Warranty period
10 year(s)
Certificates
80 PLUS certification
80 PLUS Gold
Logistics data
Warranty period
10 year(s)
GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
| Length | 61.8 cm |
| Width | 26.9 cm |
| Height | 21.1 cm |
| Weight | 2.640000 kgs |
