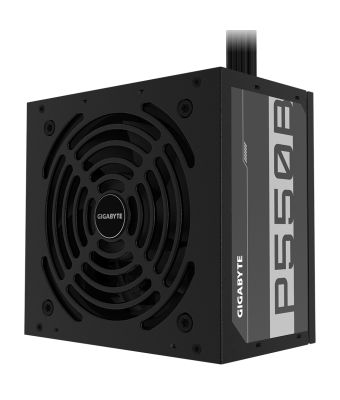

Gigabyte Netzteil P550B 550Watt
|
In Stock
€65.00
€77.35 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
ATX version
2.31
Mean time between failures (MTBF)
100000 h
Bearing technology
HDB
Harmonized System (HS) code
84733020
Design
80 PLUS certification
80 PLUS Bronze
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
550 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
8 - 4 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
108 W
Combined power (+12V)
522 W
Combined power (+5V)
108 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
18 A
Max output current (+12V)
43.5 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3:00 AM
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time
16 ms
Efficiency
85%
Ports & interfaces
Motherboard power cable length
55 cm
SATA power cable length
500 mm
Peripheral (Molex) power cable length
500 mm
PCI Express power cable length
55 cm
CPU power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
2
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
Floppy drive power connector
1
Floppy disk drive connector
Yes
ATX power connector (20+4 pin)
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Certificates
80 PLUS certification
80 PLUS Bronze
Logistics data
Harmonized System (HS) code
84733020
Other features
Harmonized System (HS) code
84733020
Gigabyte Netzteil P550B 550Watt
