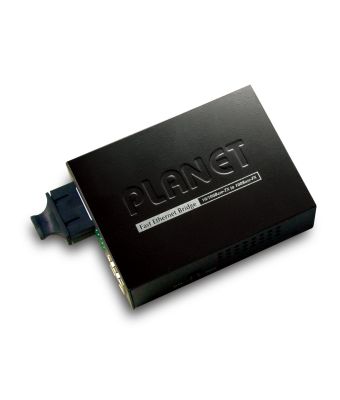

Cablenet FT-802S15 network media converter 100 Mbit/s 1310 nm Single-mode
|
Out of Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Network
Fiber optic connector
SC
Auto-negotiation
Yes
Link Loss Carry Forward (LLCF) supported
Yes
Link Loss Return (LLR) supported
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Fiber ethernet cabling technology
100BASE-FX
Converter input interface
100Base-TX
Networking standards
IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Ethernet interface type
Fast Ethernet
Duplex system
Full, Half
Converter output interface
100Base-FX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
100 Mbit/s
Technical details
Housing material
Metal
Wavelength
1310 nm
Maximum transfer distance
15000 m
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Sensitivity
-32 dBmW
Tx power (min)
-20 dBmW
Internal
No
Harmonized System (HS) code
85176990
Performance
Auto-negotiation
Yes
Wavelength
1310 nm
Maximum transfer distance
15000 m
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Sensitivity
-32 dBmW
Tx power (min)
-20 dBmW
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
DC-in jack
Yes
Indication
LED indicators
Yes
Design
Housing material
Metal
LED indicators
Yes
Product colour
Black
Certification
FCC Class A, CE Class A
Internal
No
Power
Input voltage
100 - 240 V
Output voltage
5 V
Output current
2:00 AM
External power adapter
Yes
AC input frequency
50 - 60 Hz
Colour
Product colour
Black
Weight & dimensions
Width
97 mm
Depth
70 mm
Weight
200 g
Height
26 mm
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 90%
Certificates
Certification
FCC Class A, CE Class A
