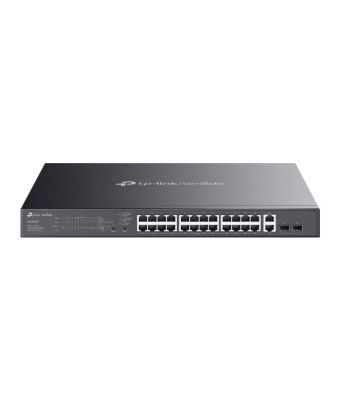

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
|
In Stock
€250.71 (Ex. VAT)
€298.34 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L2
Unified static configuration
Yes
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
26
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
26
Copper ethernet cabling technology
10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
32
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Fast leave
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping
Yes
Data transmission
Jumbo frames
15000
Packet buffer memory
4 MB
MAC address table
8000 entries
Switching capacity
56 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
41.66 Mpps
Number of VLANs
32
Security
IGMP snooping
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Design
Product colour
Black
LED indicators
Yes
Housing material
Metal
Rack mounting
Yes
Number of fans
2 fan(s)
Certification
FCC, CE, RoHS
Performance
Noise level
46.2 dB
Mean time between failures (MTBF)
224143 h
Flash memory
64 MB
Firmware upgradeable
Yes
Fanless
No
Packet buffer memory
4 MB
Power
Power consumption (max)
454.8 W
Power supply included
Yes
Surge protection voltage
6 kV
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Surge protection
Yes
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
384 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1546.15 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
32
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
Manual
Yes
Cables included
AC
Technical details
Product colour
Black
Noise level
46.2 dB
Mean time between failures (MTBF)
224143 h
Housing material
Metal
Firmware upgradeable
Yes
Rack mounting
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory
4 MB
Flash memory
64 MB
Certificates
Certification
FCC, CE, RoHS
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Yes
Packaging data
Rack mount kit
Yes
Quick start guide
Yes
Manual
Yes
Cables included
AC
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
| Length | 44 cm |
| Width | 33 cm |
| Height | 4.4 cm |
| Weight | 1.000000 kgs |
