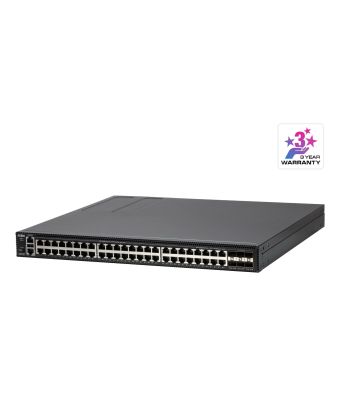

ATEN 54-Port GbE Managed Switch
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L2+
Ports & interfaces
SFP module slots quantity
6
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity
1
Fiber optic connector
SFP28
Console port
RJ-45
Network
Networking standards
IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Flow control support
Yes
10G support
Yes
Auto-negotiation
Yes
IGMP snooping
Yes
Data transmission
Jumbo frames
10000
MAC address table
32000 entries
Switching capacity
396 Gbit/s
Jumbo frames support
Yes
Forwarding rate
295 Mpps
Security
IGMP snooping
Yes
Protocols
Supported network protocols
IGMP v1/v2/v3, IGMP v1/v2
Design
Product colour
Black
Housing material
Metal
Rack mounting
Yes
Country of origin
Taiwan
Performance
Internal memory
1000 MB
Flash memory
256 MB
Auto-negotiation
Yes
Harmonized System (HS) code
85176200
Power
Power consumption (max)
54 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
-5 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
420 mm
Depth
442 mm
Height
43.6 mm
Weight
4.68 kg
Packaging data
Package width
550 mm
Package depth
650 mm
Package height
150 mm
Package weight
7.18 kg
Optical fiber
Fiber optic connector
SFP28
Technical details
Product colour
Black
Housing material
Metal
Rack mounting
Yes
Memory
Internal memory
1000 MB
Flash memory
256 MB
Other features
Country of origin
Taiwan
Logistics data
Country of origin
Taiwan
Master (outer) case width
550 mm
Master (outer) case length
650 mm
Master (outer) case height
150 mm
Master (outer) case gross weight
7.18 kg
Harmonized System (HS) code
85176200
ATEN 54-Port GbE Managed Switch
| Length | 65 cm |
| Width | 55 cm |
| Height | 15 cm |
| Weight | 7.180000 kgs |
