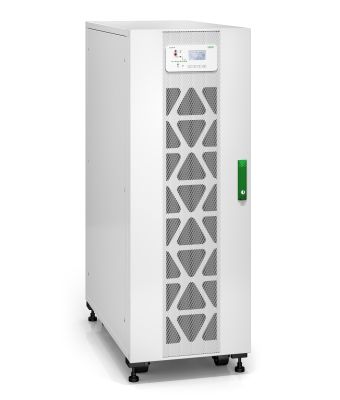

Easy UPS 3S E3SUPS30KHB - USV - Wechselstrom 380/400/415 V
|
In Stock Easy UPS 3S E3SUPS30KHB - USV - Wechselstrom 380/400/415 V
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Power
Input power factor
0.99
Output power
30000 W
Input operation voltage (min)
304 V
Input operation voltage (max)
477 V
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Maximum current
55 A
Efficiency
95%
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Input current Total Harmonic Distortion (THD)
3%
Output power capacity
30 kVA
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Number of output phases
3
Number of input phases
3
LED indicators
Yes
Noise level
63 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Number of output phases
3
Number of input phases
3
Input power factor
0.99
Output power
30000 W
Input operation voltage (min)
304 V
Input operation voltage (max)
477 V
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Maximum current
55 A
Efficiency
95%
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
63 dB
Input current Total Harmonic Distortion (THD)
3%
Output power capacity
30 kVA
ECO mode
Yes
Input frequency
45/65 Hz
Battery
Battery voltage
240 V
Battery technology
Sealed Lead Acid (VRLA)
Design
International Protection (IP) code
IP20
Form factor
Tower
LED indicators
Yes
Product colour
White
Cooling type
Active
Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 999.9 m
Non-operating altitude
0 - 15000 m
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Compliance certificates
RoHS
Cooling
Cooling type
Active
Weight & dimensions
Weight
152 kg
Width
500 mm
Height
1400 mm
Depth
969 mm
Battery width
68.3 cm
Battery depth
111.4 cm
Battery height
164 cm
Battery weight
190 kg
Logistics data
Harmonized System (HS) code
85078000
Certificates
Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
REACH
Easy UPS 3S E3SUPS30KHB - USV - Wechselstrom 380/400/415 V
| Length | 96.90 cm |
| Width | 50.00 cm |
| Height | 140.00 cm |
| Weight | 188.000000 kgs |
