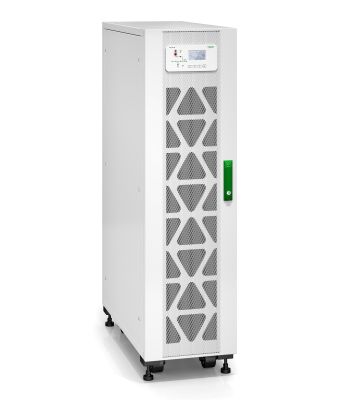

Easy UPS 3S E3SUPS10KHB - USV - Wechselstrom 380/400/415 V
|
In Stock Easy UPS 3S E3SUPS10KHB - USV - Wechselstrom 380/400/415 V
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Power
Input power factor
0.99
Output power
10000 W
Input operation voltage (min)
304 V
Input operation voltage (max)
415 V
Output operation voltage (min)
380 V
Output operation voltage (max)
477 V
Maximum current
18 A
Efficiency
94.80%
Output voltage Total Harmonic Distortion (THD)
3%
Output power capacity
10 kVA
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of output phases
3
Number of input phases
3
LED indicators
Yes
Noise level
60 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of output phases
3
Number of input phases
3
Input power factor
0.99
Output power
10000 W
Input operation voltage (min)
304 V
Input operation voltage (max)
415 V
Output operation voltage (min)
380 V
Output operation voltage (max)
477 V
Maximum current
18 A
Efficiency
94.80%
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
60 dB
Output power capacity
10 kVA
ECO mode
Yes
Input frequency
45/65 Hz
Ports & interfaces
Parallel ports quantity
1
Battery
Battery voltage
240 V
Battery technology
Sealed Lead Acid (VRLA)
Design
International Protection (IP) code
IP20
Form factor
Tower
LED indicators
Yes
Product colour
White
Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 999.9 m
Non-operating altitude
0 - 15000 m
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Weight & dimensions
Package width
563 mm
Package depth
1014 mm
Package height
1640 mm
Weight
112 kg
Width
380 mm
Package weight
145 kg
Height
1400 mm
Depth
928 mm
Packaging data
Quick installation guide
Yes
Package width
563 mm
Package depth
1014 mm
Package height
1640 mm
Package weight
145 kg
Logistics data
Harmonized System (HS) code
85078000
Certificates
Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
REACH
Other features
Nominal output voltage
400 V
Nominal input voltage
400 V
Packaging content
Quick installation guide
Yes
Easy UPS 3S E3SUPS10KHB - USV - Wechselstrom 380/400/415 V
| Length | 101.4 cm |
| Width | 56.3 cm |
| Height | 164 cm |
| Weight | 145.000000 kgs |
