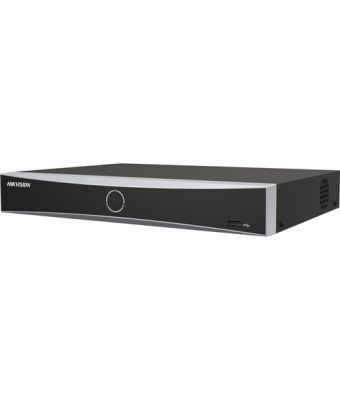

Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Performance
Video input channels
4 channels
Maximum resolution
3840 x 2160 pixels
Video formats supported
H.264, H.264+, H.265, H.265+
Supported network protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Audio formats supported
G.711 A-law, G.711 μ-law, G.722, AAC, G.726
Ethernet LAN data rates
10,1000,100 Mbit/s
Maximum frame rate
30 fps
Supported resolutions
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Networking standards
IEEE 802.3af, IEEE 802.3at
Face detection
Yes
Number of simultaneously playbacked channels
4 channels
Output bandwidth
80 Mbit/s
Input bandwidth
40 Mbit/s
Wireless LAN features
Wi-Fi
No
Hard drive
Number of HDDs supported
1
Maximum storage capacity
10 TB
HDD interface
SATA
Number of HDDs installed
0
HDD capacity
10 TB
Storage
Number of HDDs supported
1
Maximum storage capacity
10 TB
HDD interface
SATA
Number of HDDs installed
0
HDD capacity
10 TB
Ports & interfaces
Ethernet LAN (RJ-45) ports
5
Power over Ethernet (PoE)
Yes
VGA (D-Sub) output ports
1
HDMI output
Yes
USB 2.0 ports quantity
2
Supported network protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Audio RCA inputs
1
Ethernet LAN data rates
10,1000,100 Mbit/s
Audio RCA outputs
1
Power over Ethernet (PoE) ports quantity
4
Internal SATA ports quantity
1
Networking standards
IEEE 802.3af, IEEE 802.3at
HDMI ports quantity
1
Features
Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Power
Output voltage
48 V
Output current
1.35 A
Power consumption (typical)
10 W
Total Power over Ethernet (PoE) budget
50 W
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Technical details
Compliance certificates
Federal Communications Commission (FCC), CE
Weight & dimensions
Width
320 mm
Depth
240 mm
Height
48 mm
Weight
1 kg
Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR
