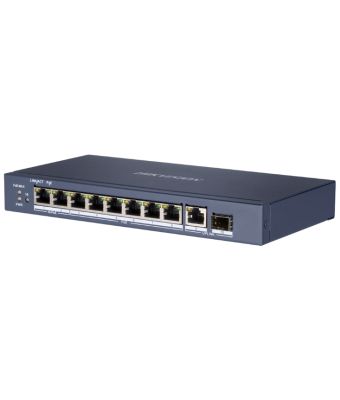

Hikvision DS-3E0510HP-E 8 Port Gigabit Unmanaged POE Switch

Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Fiber ports quantity

1

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Full duplex

Yes

10G support

No

MAC address table

4000 entries

Switching capacity

20 Gbit/s

Store-and-forward

Yes

Forwarding rate

14.88 Mpps

Product colour

Blue

Housing material

Metal

Rack mounting

No

Certification

FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006)

Power consumption (max)

120 W

Input current

2.22 A

DC input voltage

54 V

Total Power over Ethernet (PoE) budget

110 W

Power over Ethernet (PoE) ports quantity

6

Power over Ethernet (PoE)

Yes

Storage temperature (T-T)

-40 - 85 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

-10 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Width

217.6 mm

Depth

27.8 mm

Height

108.5 mm

Weight

590 g

Product colour

Blue

Housing material

Metal

Rack mounting

No

Harmonized System (HS) code

85176990

Certification

FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006)

Harmonized System (HS) code

85176990
