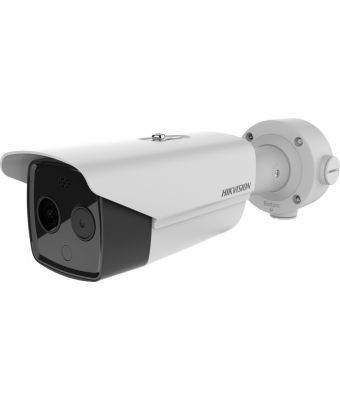

Hikvision Digital Technology DS-2TD2617B-6/PA security camera IP security camera
|
In Stock €2607.86
€3103.35 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
SPECIFICATIONS
Product Description
Hikvision Thermographic Bullet Body Temperature Camera DS-2TD2617B-6/PA - camera
Device Type
Thermal / network surveillance camera - fixed
Audio
Yes
Dimensions (WxDxH)
4.5 in x 14.1 in x 4.5 in
Weight
3.88 lbs
Connectivity Technology
Wired
Camera
Color - Day&Night - NTSC PAL
Frame Rate (max)
30 frames per second
Optical Sensor Type
Uncooled VOx FPA / PS CMOS - 1/2.7"
Focal Length Control
Fixed focal
Focal Length
8 mm
Control Interface
RS-485
Voltage
DC 12 V / PoE Class 3
Environmental Parameters (operating)
-4 °F - 122 °F; 0 - 95% relative humidity
General
Audio Support
Yes
Audio Formats
PCM G.726 G.722.1 MP2L2 G.711a G.711u
Connectivity Technology
Wired
Width
4.5 in
Depth
14.1 in
Height
4.5 in
Weight
3.88 lbs
Camera
Type
Color - Day&Night - fixed
Video Format
NTSC PAL
Digital Video Format
MJPEG H.264 H.265
Exposure Range
1 sec - 1/100000 sec
Infrared LEDs
Yes
Infrared Distance
131 ft
Video Capture
2688 x 1520 @ 30 fps
Image Sensor
Type
Uncooled VOx FPA / PS CMOS 1/2.7"
Lens Construction
Type
Fixed focal
Focal Length
8 mm
Horizontal Field of View (degree)
39.42
Vertical Field of View (degree)
22.14
Interfaces
Video
Composite video
Network Interface
Ethernet 10Base-T/100Base-TX
Control Interface
RS-485
Alarm Inputs Qty
2
Alarm Outputs Qty
2
Expansion / Connectivity
Supported Memory Cards
microSD Card microSDHC Card microSDXC Card
Miscellaneous
Compliant Standards
IP66
Power
Power Requirements
DC 12 V / PoE Class 3
Power Device
8 Watt
Environmental Parameters
Min Operating Temperature
-4 °F
Max Operating Temperature
122 °F
Relative Humidity (operating)
0 - 95%
Hikvision Digital Technology DS-2TD2617B-6/PA security camera IP security camera
| Length | 35.81 cm |
| Width | 11.43 cm |
| Height | 11.43 cm |
| Weight | 1.760000 kgs |
