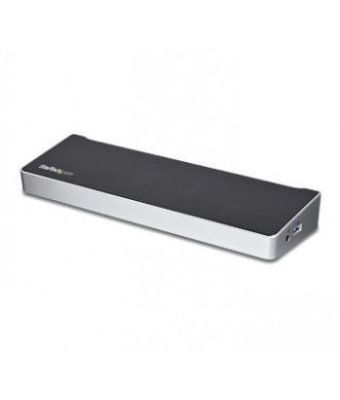

StarTech USB-C Dock - 4K Triple Monitor Laptop Docking Station with Dual DisplayPort & HDMI - 100W Power Delivery - USB-C, 4x USB-A Hub - USB 3.1 Gen 1 Type-C Dock - Windows & Mac

Combo headphone/mic port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Headphone connectivity

3.5 mm

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

DisplayPorts quantity

2

Microphone in

Yes

Headphone outputs

2

DC-in jack

Yes

Connectivity technology

Wired

USB Power Delivery

Yes

USB Power Delivery up to

100 W

Full duplex

Yes

Auto MDI/MDI-X

Yes

Networking standards

IEEE 802.3-IEEE 802.3ab-IEEE 802.3u

Ethernet LAN

Yes

Ethernet LAN data rates

10-100-1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

UASP support

Yes

Maximum digital resolution

5120 x 2880 pixels

Full duplex

Yes

Auto MDI/MDI-X

Yes

On/off switch

Yes

Product colour

Black- Silver

Card reader integrated

No

Cable lock slot

Yes

Data transfer rate

5 Gbit/s

Certification

CE- FCC- TAA- REACH

Rubber feet

Yes

Housing material

Plastic

Product colour

Black- Silver

Cable lock slot

Yes

Data transfer rate

5 Gbit/s

Sustainability certificates

RoHS

Quantity per master (outer) case

8 pc(s)

Master (outer) case width

36.5 cm

Master (outer) case length

37 cm

Master (outer) case height

37 cm

Card reader integrated

No

Input current

2.5 A

Power plug type

Type N

Compatible power plug types

EU-UK

AC input voltage

100 - 240 V

Output voltage

20 V

Output current

7.5 A

Power supply

100 W

Windows operating systems supported

Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite-Mac OS X 10.11 El Capitan-Mac OS X 10.12 Sierra-Mac OS X 10.14 Mojave-Mac OS X 10.15 Catalina-Mac OS X 10.9 Mavericks

Mac compatibility

Yes

Other operating systems supported

Chrome

Weight

382 g

Width

82 mm

Depth

270 mm

Height

34 mm

Package weight

1.7 kg

Package width

160 mm

Package depth

320 mm

Package height

80 mm

Windows operating systems supported

Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite-Mac OS X 10.11 El Capitan-Mac OS X 10.12 Sierra-Mac OS X 10.14 Mojave-Mac OS X 10.15 Catalina-Mac OS X 10.9 Mavericks

Product colour

Black- Silver

Cable lock slot

Yes

Certification

CE- FCC- TAA- REACH

Rubber feet

Yes

Package weight

1.7 kg

Package width

160 mm

Package depth

320 mm

Package height

80 mm

Manual

Yes

Cables included

USB Type-C

AC adapter included

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 70%

Certification

CE- FCC- TAA- REACH

Quantity per master (outer) case

8 pc(s)

Master (outer) case width

36.5 cm

Master (outer) case length

37 cm

Master (outer) case height

37 cm

Chipset

DisplayLink - DL-6950- Genesys Logic - GL3523- Genesys Logic - GL3523S- Texas Instruments - TPS65982- Parade Technologies - PS176
