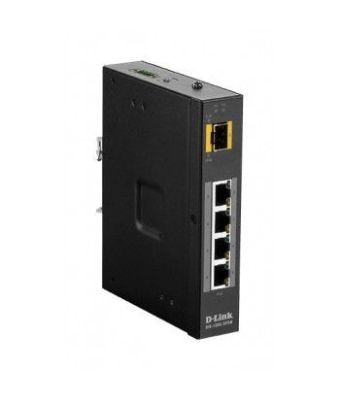

D-Link DIS‑100G‑5PSW Unmanaged L2 Gigabit Ethernet Power over Ethernet

Multicast support

Yes

Traffic shaping

Yes

Switch type

Unmanaged

Switch layer

L2

Fiber optic connector

LC

Auto-negotiation

Yes

Product colour

Black

Shipping (inner) case width

38 cm

Shipping (inner) case net weight

7 kg

Shipping (inner) case length

39 cm

Shipping (inner) case height

24 cm

Quantity per shipping (inner) case

10 pc(s)

Quantity per pallet (sea)

480 pc(s)

Quantity per pallet (air)

300 pc(s)

Pallet width

110 cm

Pallet length

120 cm

Pallet height (sea)

2.06 m

Pallet height (air)

133.5 cm

Pallet gross weight (sea)

391.9 kg

Pallet gross weight (air)

251.3 kg

Number of cartons per pallet (sea)

48 pc(s)

Number of cartons per pallet (air)

30 pc(s)

Power protection features

Over current- Reverse polarity

Power over Ethernet (PoE) voltage range

54 - 58 V

Power over Ethernet plus (PoE+) ports quantity

4

Total Power over Ethernet (PoE) budget

120 W

Power over Ethernet (PoE)

Yes

SFP module slots quantity

1

Basic switching RJ-45 Ethernet ports quantity

4

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fiber optic connector

LC

Networking standards

IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z

Full duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

10G support

No

Auto-negotiation

Yes

Jumbo frames

9000

MAC address table

2000 entries

Switching capacity

10 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Forwarding rate

7.44 Mpps

Multicast support

Yes

Electromagnetic compatibility

FCC 15- EN 61000-6-2- EN 61000-6-4- EN 61000-4-2- -3- -4- -5- -6 (3)

Certification

IEC60068-2-6; IEC60068-2-27; IEC60068-2-32- UL 61010-1- UL C1D2- CE- FCC- RoHS- WEEE

Wall mountable

Yes

DIN rail mounting

Yes

Product colour

Black

LED indicators

LAN- PoE- Power

Electromagnetic compatibility

FCC 15- EN 61000-6-2- EN 61000-6-4- EN 61000-4-2- -3- -4- -5- -6 (3)

Certification

IEC60068-2-6; IEC60068-2-27; IEC60068-2-32- UL 61010-1- UL C1D2- CE- FCC- RoHS- WEEE

LED indicators

LAN- PoE- Power

Power consumption (max)

120.2 W

Power protection features

Over current- Reverse polarity

DC input voltage

12 - 58 V

Storage temperature (T-T)

-40 - 85 °C

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Heat dissipation

410.12 BTU/h

Width

139 mm

Depth

29 mm

Height

107 mm

Weight

375 g

Package width

181 mm

Package depth

210 mm

Package height

75 mm

Package weight

700 g
