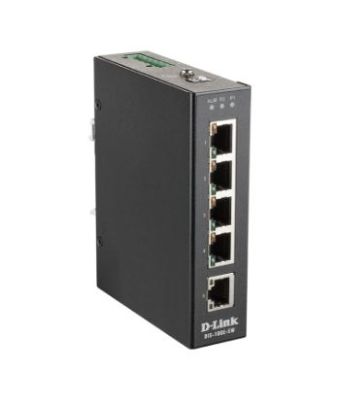

D-Link DIS-100E-5W network switch Unmanaged L2 Fast Ethernet (10/100) Black
|
In Stock €135.41
€161.14 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-100BASE-T
Relay outputs
1
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Performance
Stackable
Yes
Auto-negotiation
Yes
Plug and Play
Yes
Mean time between failures (MTBF)
219000 h
Technical details
Product colour
Black
Stackable
Yes
Mean time between failures (MTBF)
219000 h
Rack mounting
Yes
Shipping (inner) case width
30.5 cm
Shipping (inner) case net weight
5.78 kg
Shipping (inner) case length
43 cm
Shipping (inner) case height
20 cm
Quantity per shipping (inner) case
10 pc(s)
Quantity per pallet (sea)
540 pc(s)
Quantity per pallet (air)
360 pc(s)
Pallet width
110 cm
Pallet length
120 cm
Pallet height (sea)
195 cm
Pallet height (air)
135 cm
Pallet gross weight (sea)
330.7 kg
Pallet gross weight (air)
226.4 kg
Number of cartons per pallet (sea)
54 pc(s)
Number of cartons per pallet (air)
36 pc(s)
Management features
Switch type
Unmanaged
Switch layer
L2
Network
Copper ethernet cabling technology
10BASE-T-100BASE-TX-100BASE-T
Networking standards
IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
MAC address table
1000 entries
Store-and-forward
Yes
Certificates
Certification
UL 60950â1 CE FCC
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Product colour
Black
Stackable
Yes
Certification
UL 60950â1 CE FCC
Rack mounting
Yes
Power
Power consumption (max)
1.56 W
Power consumption (typical)
0.95 W
DC input voltage
12 - 58 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
29.1 mm
Depth
89.4 mm
Height
109.2 mm
Weight
320 g
Packaging data
Package width
140 mm
Package depth
178 mm
Package height
83 mm
Package weight
488 g
D-Link DIS-100E-5W network switch Unmanaged L2 Fast Ethernet (10/100) Black
