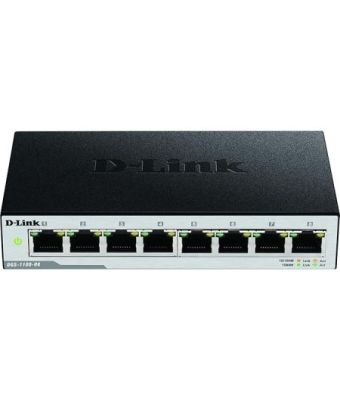

D-Link DGS-1100-08PV2 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Etherne
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
8
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Full duplex
Yes
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Half duplex
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping
Yes
Data transmission
Jumbo frames
9216
MAC address table
4096 entries
Switching capacity
16 Gbit/s
Number of queues
4
Jumbo frames support
Yes
Forwarding rate
11.9 Mpps
Number of VLANs
4094
Security
Loop protection
Yes
IGMP snooping
Yes
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Design
Product colour
Black
LED indicators
Yes
Rack mounting
No
Certification
FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
Performance
Mean time between failures (MTBF)
786841 h
Flash memory
2 MB
Fanless
Yes
Harmonized System (HS) code
85176990
Power
Power consumption (max)
77.9 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
64 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Heat dissipation
265.85 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Port-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
171 mm
Depth
97.8 mm
Height
28.6 mm
Weight
430 g
Sustainability
Sustainability compliance
Yes
Technical details
Product colour
Black
Mean time between failures (MTBF)
786841 h
Rack mounting
No
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Memory
Flash memory
2 MB
Certificates
Certification
FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
Compliance certificates
CE, RoHS
Indication
LED indicators
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Logistics data
Harmonized System (HS) code
85176990
D-Link DGS-1100-08PV2 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Etherne
