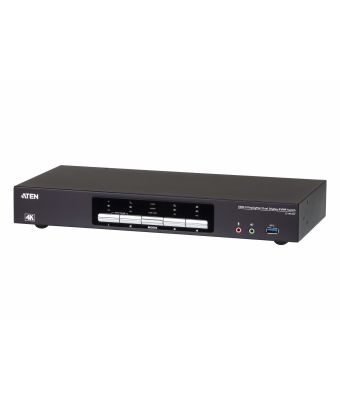

Aten CS1944DP KVM switch Black
|
In Stock
€465.66 (Ex. VAT)
€554.14 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Number of microphone inputs
6
DisplayPorts quantity
10
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
6
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
HDCP
Yes
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN (RJ-45) ports
1
Performance
HDCP
Yes
Firmware upgradeable
Yes
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Scan interval
1,99 s
Technical details
Product colour
Black
Scan interval
1,99 s
Push button
Yes
LED indicators
Yes
Hot keys
No
USB hub
Yes
Compliance certificates
RoHS
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
No
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
5.76 W
Input voltage
12 V
System requirements
Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 9.3, openSUSE 13.1
Mac operating systems supported
Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Other operating systems supported
DOS, Novell NetWare 5.x, Novell NetWare 6.x
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
156.6 mm
Depth
335 mm
Height
44 mm
Weight
1.51 kg
Packaging content
Cables included
Audio (3.5mm), DisplayPort, KVM, USB
Manual
Yes
AC adapter included
Yes
Other features
Push button
Yes
Hot keys
No
Logistics data
Harmonized System (HS) code
85176200
Aten CS1944DP KVM switch Black
| Length | 15.66 cm |
| Width | 33.5 cm |
| Height | 4.4 cm |
| Weight | 1.510000 kgs |
