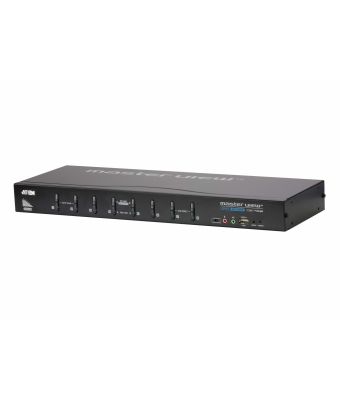

ATEN 8-Port USB DVI Single-Link KVM Switch, Audio
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
USB connector type
USB Type-A, USB Type-B
Number of microphone inputs
10
Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-I
Audio connections
Yes
Headphone outputs
10
DVI-I ports quantity
8
DC-in jack
Yes
USB hub
Yes
USB 2.0 Type-B ports quantity
8
USB 2.0 Type-A hub ports quantity
2
Performance
DDC2B support
Yes
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Scan interval
1,5,255 s
Technical details
Product colour
Black
Scan interval
1,5,255 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
4.53 W
Input voltage
5.3 V
Video
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
437.2 mm
Depth
161.2 mm
Height
44 mm
Weight
3.61 kg
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
4.07 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
4.07 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Logistics data
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
13.6 kg
Products per master (outer) case
3 pc(s)
Master (outer) case net weight
10.8 kg
Harmonized System (HS) code
85176200
ATEN 8-Port USB DVI Single-Link KVM Switch, Audio
| Length | 54 cm |
| Width | 11.6 cm |
| Height | 23.3 cm |
| Weight | 4.070000 kgs |
