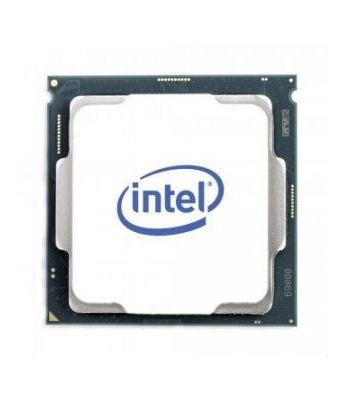

Intel Xeon E-2224 processor 3.4 GHz 8 MB
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Processor
Processor base frequency
3.4 GHz
Processor manufacturer
Intel
Cooler included
No
Processor codename
Coffee Lake
Thermal Design Power (TDP)
71 W
Processor cache
8 MB
Processor ARK ID
191036
Processor model
E-2224
Processor threads
4
System bus rate
8 GT/s
Processor operating modes
64-bit
Processor boost frequency
4.6 GHz
Component for
Server/workstation
Processor lithography
14 nm
Processor family
Intel Xeon E
Processor cores
4
Box
No
Processor socket
LGA 1151 (Socket H4)
Processor cache type
Smart Cache
Memory
Maximum internal memory supported by processor
128 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2666 MHz
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Graphics
Discrete graphics card
No
On-board graphics card 4K support
No
On-board graphics card model
Not available
On-board graphics card
No
Discrete graphics card model
Not available
Power
Thermal Design Power (TDP)
71 W
Technical details
Intel TSX-NI
Yes
Intel® Secure Key
Yes
Thermal Monitoring Technologies
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Quick Sync Video Technology
No
Intel® InTru⢠3D Technology
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
PCI Express slots version
3.0
PCI Express configurations
1x16- 2x8- 1x8+2x4
Supported instruction sets
SSE4.1- SSE4.2- AVX 2.0
Scalability
1S
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
No
CPU configuration (max)
1
Graphics output
N/A
Product type
Processor
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Thermal Design Power (TDP)
71 W
Supported memory types
DDR4-SDRAM
Status
Launched
Maximum resolution & refresh rate (DisplayPort)
N/A
Market segment
Server
Launch date
Q2'19
Intel Virtualization Technology (VT-x)
Yes
Processor cache type
Smart Cache
Maximum memory
128 GB
Processor ID
N/A
Bus speed
8 GT/s
Servicing status
Baseline Servicing
Features
Maximum number of PCI Express lanes
16
Thermal Design Power (TDP)
71 W
Processor package size
37.5mm x 37.5mm
Processor ARK ID
191036
Thermal Monitoring Technologies
Yes
Idle States
Yes
Execute Disable Bit
Yes
PCI Express slots version
3.0
PCI Express configurations
1x16- 2x8- 1x8+2x4
Supported instruction sets
SSE4.1- SSE4.2- AVX 2.0
Scalability
1S
Embedded options available
No
CPU configuration (max)
1
Market segment
Server
Harmonized System (HS) code
85423119
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
PCI Express CEM revision
3.0
Processor special features
Intel Clear Video Technology
No
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® Optane⢠Memory Ready
Yes
Intel® OS Guard
Yes
Intel TSX-NI
Yes
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Quick Sync Video Technology
No
Intel® InTru⢠3D Technology
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel® Boot Guard
Yes
Intel® vPro⢠Platform Eligibility
Yes
Intel® Turbo Boost Technology 2.0 frequency
4.6 GHz
Intel® Transactional Synchronization Extensions
Yes
Operational conditions
Tjunction
100 °C
Tcase
69.3 °C
Packaging data
Package type
Retail box
Logistics data
Harmonized System (HS) code
85423119
Weight & dimensions
Processor package size
37.5mm x 37.5mm
Other features
Maximum internal memory
128 GB
CPU configuration (max)
1
Graphics output
N/A
Intel Xeon E-2224 processor 3.4 GHz 8 MB
