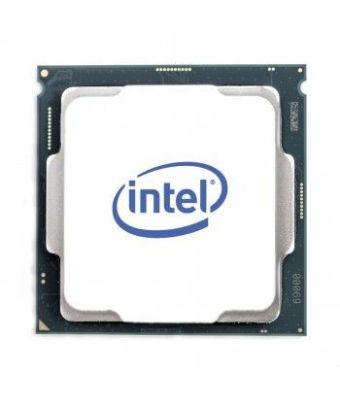

Intel Core i5-9500 processor 3 GHz 9 MB Smart Cache

Processor base frequency

3 GHz

Processor manufacturer

Intel

Cooler included

No

Processor codename

Coffee Lake

Memory bandwidth supported by processor (max)

41.6 GB/s

Thermal Design Power (TDP)

65 W

Processor cache

9 MB

Processor ARK ID

134895

Processor model

i5-9500

Processor threads

6

System bus rate

8 GT/s

Processor operating modes

64-bit

Processor boost frequency

4.4 GHz

Component for

PC

Processor lithography

14 nm

Processor family

9th gen Intel® Core™ i5

Processor cores

6

Box

No

Processor socket

LGA 1151 (Socket H4)

Processor series

9th Generation Intel Core i5 Processors

Processor cache type

Smart Cache

Generation

9th Generation

Maximum internal memory supported by processor

128 GB

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

2666 MHz

Memory bandwidth supported by processor (max)

41.6 GB/s

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

ECC

No

Discrete graphics adapter

No

On-board graphics adapter outputs supported

DisplayPort-Embedded DisplayPort (eDP)-HDMI

On-board graphics adapter maximum resolution (DisplayPort)

4096 x 2304 pixels

On-board graphics adapter ID

0x3E92

On-board graphics adapter 4K support

Yes

On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel)

4096 x 2304 pixels

On-board graphics adapter refresh rate at maximum resolution (HDMI)

24 Hz

On-board graphics adapter refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel)

60 Hz

Maximum on-board graphics adapter memory

64 GB

Number of displays supported (on-board graphics)

3

On-board graphics adapter maximum resolution (HDMI)

4096 x 2304 pixels

On-board graphics adapter DirectX version

12.0

On-board graphics adapter OpenGL version

4.5

On-board graphics adapter model

Intel® UHD Graphics 630

On-board graphics adapter

Yes

On-board graphics adapter dynamic frequency (max)

1100 MHz

On-board graphics adapter base frequency

350 MHz

Discrete graphics adapter model

Not available

Maximum graphics adapter memory

64 GB

Thermal Design Power (TDP)

65 W

Intel Stable Image Platform Program (SIPP)

Yes

Thermal solution specification

PCG 2015C

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Thermal Monitoring Technologies

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

No

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Idle States

Yes

Execute Disable Bit

Yes

Enhanced Intel SpeedStep Technology

Yes

PCI Express slots version

3.0

PCI Express configurations

1x16-2x8-1x8+2x4

Supported instruction sets

SSE4.1-SSE4.2-AVX 2.0

Scalability

1S

Intel VT-x with Extended Page Tables (EPT)

Yes

Embedded options available

No

CPU configuration (max)

1

Product type

Processor

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Thermal Design Power (TDP)

65 W

Supported memory types

DDR4-SDRAM

Status

Launched

Processor series

9th Generation Intel Core i5 Processors

Maximum resolution & refresh rate (DisplayPort)

4096 x 2304@60Hz

Market segment

Desktop

Launch date

Q2'19

Intel Virtualization Technology (VT-x)

Yes

Processor cache type

Smart Cache

Maximum memory

128 GB

Maximum graphics adapter memory

64 GB

Processor ID

0x3E92

Bus speed

8 GT/s

On-board graphics adapter ID

0x3E92

Maximum number of PCI Express lanes

16

Thermal Design Power (TDP)

65 W

Processor package size

37.5 x 37.5 mm

Processor ARK ID

134895

Thermal solution specification

PCG 2015C

Thermal Monitoring Technologies

Yes

Idle States

Yes

Execute Disable Bit

Yes

PCI Express slots version

3.0

PCI Express configurations

1x16-2x8-1x8+2x4

Supported instruction sets

SSE4.1-SSE4.2-AVX 2.0

Scalability

1S

Embedded options available

No

CPU configuration (max)

1

Market segment

Desktop

Intel® Optane™ Memory module included

Yes

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

PCI Express CEM revision

3.0

Intel Clear Video Technology

Yes

Intel Software Guard Extensions (Intel SGX)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Intel® Memory Protection Extensions (Intel® MPX)

Yes

Intel® Optane™ Memory Ready

Yes

Intel® OS Guard

Yes

Intel Stable Image Platform Program (SIPP)

Yes

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

No

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Boot Guard

Yes

Intel® vPro™ Platform Eligibility

Yes

Intel® Turbo Boost Technology 2.0 frequency

4.4 GHz

Intel® Transactional Synchronization Extensions

Yes

Tjunction

100 °C

Package width

70 mm

Package depth

116 mm

Package height

101 mm

Package weight

338 g

Package type

Retail box

Processor package size

37.5 x 37.5 mm

Package width

70 mm

Package depth

116 mm

Package height

101 mm

Package weight

338 g

Maximum internal memory

128 GB

CPU configuration (max)

1
