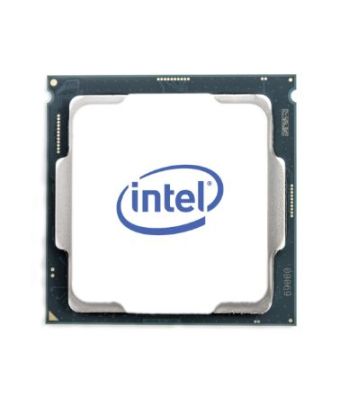

Intel Pentium Gold G5400 processor 3.7 GHz 4 MB Smart Cache
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Processor
Processor base frequency
3.7 GHz
Processor manufacturer
Intel
Cooler included
No
Processor codename
Coffee Lake
Memory bandwidth supported by processor (max)
37.5 GB/s
Thermal Design Power (TDP)
58 W
Processor cache
4 MB
Processor ARK ID
129951
Processor model
G5400
Processor threads
4
System bus rate
8 GT/s
Processor operating modes
64-bit
Bus type
DMI3
Component for
PC
Processor lithography
14 nm
Processor family
Intel® Pentium® Gold
Processor cores
2
Box
No
Processor socket
LGA 1151 (Socket H4)
Processor series
Intel Pentium Gold Series
Processor cache type
Smart Cache
Memory
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Memory bandwidth supported by processor (max)
37.5 GB/s
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Graphics
Discrete graphics card
No
On-board graphics card maximum resolution (DisplayPort)
4096 x 2304 pixels
On-board graphics card ID
0x3E90/x93
On-board graphics card 4K support
Yes
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)
24 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
60 Hz
Maximum on-board graphics card memory
64 GB
Number of displays supported (on-board graphics)
3
On-board graphics card maximum resolution (HDMI)
4096 x 2304 pixels
On-board graphics card DirectX version
12
On-board graphics card OpenGL version
4.5
On-board graphics card model
Intel® UHD Graphics 610
On-board graphics card
Yes
On-board graphics card dynamic frequency (max)
1050 MHz
On-board graphics card base frequency
350 MHz
Discrete graphics card model
Not available
Maximum graphics card memory
64 GB
Power
Thermal Design Power (TDP)
58 W
Technical details
Intel Stable Image Platform Program (SIPP)
No
Thermal solution specification
PCG 2015C
Intel TSX-NI
No
Intel® Secure Key
Yes
Thermal Monitoring Technologies
Yes
Intel® Turbo Boost Technology
No
Intel Trusted Execution Technology
No
Intel® Quick Sync Video Technology
Yes
Intel® InTru⢠3D Technology
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
PCI Express slots version
3
PCI Express configurations
1x16, 2x8, 1x8+2x4
Supported instruction sets
SSE4.1, SSE4.2
Scalability
1S
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Enhanced Halt State
Yes
Embedded options available
Yes
CPU configuration (max)
1
Product type
Processor
Processor cache
4096 KB
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Thermal Design Power (TDP)
58 W
Supported memory types
DDR4-SDRAM
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Status
Launched
Processor series
Intel Pentium Gold Series
Maximum resolution & refresh rate (Integrated Flat Panel)
4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)
4096x2304@24Hz
Maximum resolution & refresh rate (DisplayPort)
4096x2304@60Hz
Market segment
Desktop
Launch date
Q2'18
Intel Virtualization Technology (VT-x)
Yes
Intel Stable Image Platform Program (SIPP) version
0
Intel Secure Key Technology version
1
Intel Identity Protection Technology version
1
Processor cache type
Smart Cache
Bus type units
GT/s
Bus bandwidth
8
Maximum memory
64 GB
Intel TSX-NI version
0
Processor brand name
Intel Pentium Gold (2017)
Intel Pentium Gold Processor (2017)
Last change
63903513
Product family
Intel Pentium Processor
Maximum graphics card memory
64 GB
Processor ID
0x3E90/x93
Bus speed
8 GT/s
Features
On-board graphics card ID
0x3E90/x93
Maximum number of PCI Express lanes
16
Thermal Design Power (TDP)
58 W
Processor package size
37.5 x 37.5 mm
Processor ARK ID
129951
Thermal solution specification
PCG 2015C
Thermal Monitoring Technologies
Yes
Idle States
Yes
Execute Disable Bit
Yes
PCI Express slots version
3
PCI Express configurations
1x16, 2x8, 1x8+2x4
Supported instruction sets
SSE4.1, SSE4.2
Scalability
1S
Embedded options available
Yes
CPU configuration (max)
1
Market segment
Desktop
Harmonized System (HS) code
8542310001
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
PCI Express CEM revision
3
Processor special features
Intel Clear Video Technology
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® Optane⢠Memory Ready
Yes
Intel® OS Guard
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel TSX-NI
No
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
No
Intel Trusted Execution Technology
No
Intel® Quick Sync Video Technology
Yes
Intel® InTru⢠3D Technology
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Enhanced Halt State
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Stable Image Platform Program (SIPP) version
0
Intel Secure Key Technology version
1
Intel Identity Protection Technology version
1
Intel TSX-NI version
0
Intel® Boot Guard
Yes
Intel® vPro⢠Platform Eligibility
No
Intel® Transactional Synchronization Extensions
No
Operational conditions
Tjunction
100 °C
Packaging data
Package type
Retail box
Logistics data
Harmonized System (HS) code
8542310001
Weight & dimensions
Processor package size
37.5 x 37.5 mm
Other features
Maximum internal memory
65536 MB
Maximum internal memory
64 GB
CPU configuration (max)
1
Intel Pentium Gold G5400 processor 3.7 GHz 4 MB Smart Cache
