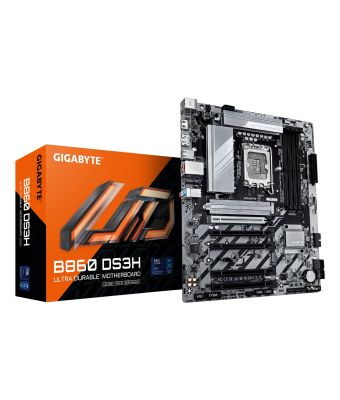

GIGABYTE B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz D
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
3
Number of RGB LED pin headers
4
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Supported processor sockets
LGA 1851
Serial port headers
1
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
HDMI version
2.1
Cooling type
Passive
Motherboard form factor
ATX
Component for
PC
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1851
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Core⢠Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
5600,6400,9066 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
9066 MHz
ECC Ñompatibility
ECC & Non-ECC
Maximum internal memory per slot
64 GB
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
2.1
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
0
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Supported processor sockets
LGA 1851
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC897
Product colour
Dark brown
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
4
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5
2nd M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Weight
2 kg
Width
305 mm
Depth
244 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Screws included
Yes
Other features
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Weight
2 kg
GIGABYTE B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz D
| Length | 27 cm |
| Width | 33.5 cm |
| Height | 8 cm |
| Weight | 1.000000 kgs |
