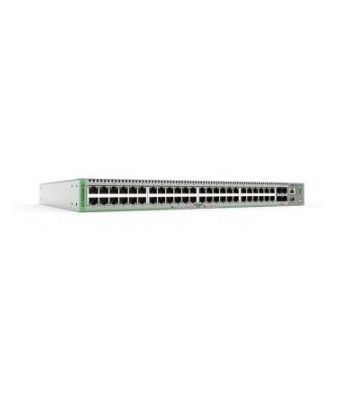

Allied Telesis At-Gs980m/52-50 Managed Gigabit Ethernet
|
In Stock Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
SNMP MIB
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Switching optical modules type
100 Gigabit Ethernet
Basic switching RJ-45 Ethernet ports quantity
48
Installed SFP modules quantity
4
Fiber optic connector
SFP
Network
IGMP snooping
Yes
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Data transmission
Number of VLANs
4094
Jumbo frames
10000
Latency (10-100 Mbps)
5.5 µs
Latency (1 Gbps)
2.6 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
77.4 Mpps
Optical fiber
Fiber optic connector
SFP
Fiber ethernet cabling technology
100BASE-X-1000BASE-X
Switching optical modules type
100 Gigabit Ethernet
Performance
Packet buffer memory
1.5 MB
Noise level
39 dB
Memory type
DDR-SDRAM
Internal memory
256 MB
Flash memory
64 MB
Harmonized System (HS) code
8517.62.0050
Technical details
Product colour
Grey
Noise level
39 dB
Rack mounting
Yes
Security
Loop protection
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Password protection
Yes
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP
Routing protocols
RIP-RIP-2
Memory
Packet buffer memory
1.5 MB
Memory type
DDR-SDRAM
Internal memory
256 MB
Flash memory
64 MB
Design
Wall mountable
Yes
Product colour
Grey
LED indicators
Yes
Electromagnetic compatibility
EN55024
Rack mounting
Yes
Indication
LED indicators
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
47 W
Input current
1.0 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4000 m
Heat dissipation
160 BTU/h
Weight & dimensions
Width
441 mm
Depth
323 mm
Height
44 mm
Weight
4.5 kg
Allied Telesis At-Gs980m/52-50 Managed Gigabit Ethernet
| Length | 32.30 cm |
| Width | 44.10 cm |
| Height | 4.40 cm |
| Weight | 4.500000 kgs |
