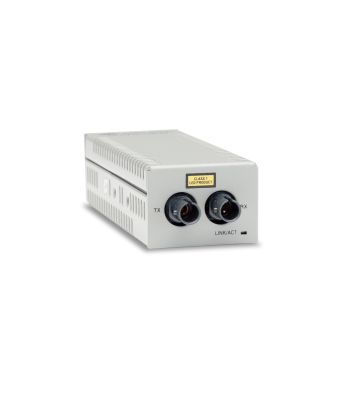

Allied Telesis AT-DMC100/ST-30 network media converter Internal 100 Mbit/s 1310 nm Multi-mode Grey
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Network
Fiber optic connector
ST
Data transfer rate
100 Mbit/s
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (1 Gbps)
1488000 pps
VLAN support
Yes
Converter input interface
100Base-TX
Networking standards
IEEE 802.1Q
Ethernet interface type
Fast Ethernet
Duplex system
Full, Half
Converter output interface
100Base-FX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
100 Mbit/s
Technical details
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-22.5 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Internal
Yes
Data transfer rate
100 Mbit/s
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector
ST
Indication
LED indicators
Yes
Performance
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-22.5 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Design
LED indicators
Yes
Product colour
Grey
Internal
Yes
Power
Power consumption (typical)
1.5 W
Colour
Product colour
Grey
Weight & dimensions
Width
31.8 mm
Depth
91.4 mm
Weight
113 g
Height
21.6 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Allied Telesis AT-DMC100/ST-30 network media converter Internal 100 Mbit/s 1310 nm Multi-mode Grey
