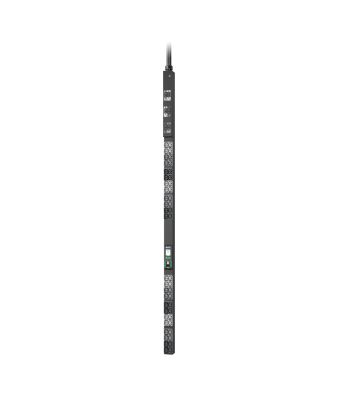

APC NetShelter Rack PDU Advanced, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 48 Outlets, I
|
In Stock
€1623.01
€1931.38 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Design
On/off switch
Yes
Type
Three-phase
PDU types
Metered
Mounting
Vertical
Display
LCD
Product colour
Black
Form factor
Rackmount
Regulatory Approvals
CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
Rack capacity
0U
Ports & interfaces
USB ports quantity
1
AC outlets quantity
48 AC outlet(s)
AC outlet types
C13 coupler, C15 coupler, C19 coupler, C21 coupler
Power plug
IEC 60309
Ethernet LAN (RJ-45) ports
2
Features
Cable length
1.8 m
LED indicators
Activity, Network, Power
Daisy chain
Yes
Surge protection
Yes
Colour-coded outlets
Yes
Security algorithms
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection
Yes
Compatible products
Compatible with most NetShelter SX
enclosures and third-party racks
Reset button
Yes
Management features
Firmware upgradeable via
Network, USB
Firmware upgradeable
Yes
Monitoring
Current, Humidity, Power, Temperature, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length
1.8 m
LED indicators
Activity, Network, Power
Display
LCD
Compatible products
Compatible with most NetShelter SX
enclosures and third-party racks
Power
Maximum power
22000 W
Nominal input voltage
400 V
Nominal output voltage
230 V
Output voltage
230 V
Power protection features
Overload
Maximum current
32 A
Maximum total current draw per phase
32 A
Load capacity
22100 VA
Surge protection
Yes
AC input frequency
50 - 60 Hz
Number of phases
3
Weight & dimensions
Weight
8.4 kg
Width
56 mm
Depth
75 mm
Height
1780 mm
Package width
262 mm
Package depth
132 mm
Package height
1980 mm
Package weight
11.4 kg
Packaging data
Package width
262 mm
Package depth
132 mm
Package height
1980 mm
Package weight
11.4 kg
Operational conditions
Operating temperature (T-T)
-5 - 60 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
23 - 140 °F
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Technical details
Total carbon footprint (kg of CO2e)
13750.11
Compliance certificates
RoHS
Security
Security algorithms
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection
Yes
APC NetShelter Rack PDU Advanced, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 48 Outlets, I
| Length | 13.2 cm |
| Width | 26.2 cm |
| Height | 198 cm |
| Weight | 11.400000 kgs |
