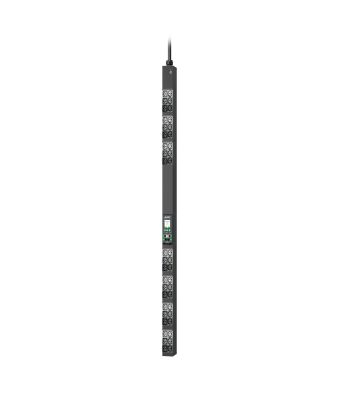

APC NetShelter Rack PDU Advanced, Switched, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 42 Outlets, IEC309
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Design
On/off switch
Yes
Type
Three-phase
PDU types
Switched
Mounting
Vertical
Display
LCD
Product colour
Black
Form factor
Rackmount
Regulatory Approvals
CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
Rack capacity
0U
Ports & interfaces
USB ports quantity
1
AC outlets quantity
42 AC outlet(s)
AC outlet types
C13 coupler, C15 coupler, C19 coupler, C21 coupler
Power plug
IEC 60309
Ethernet LAN (RJ-45) ports
2
Features
Cable length
1.8 m
LED indicators
Activity, Network, Power
Daisy chain
Yes
Surge protection
Yes
Colour-coded outlets
Yes
Security algorithms
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection
Yes
Compatible products
Compatible with most NetShelter SX enclosures and third-party racks
Reset button
Yes
Management features
Firmware upgradeable via
Network, USB
Firmware upgradeable
Yes
Monitoring
Current, Humidity, Power, Temperature, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length
1.8 m
LED indicators
Activity, Network, Power
Display
LCD
Compatible products
Compatible with most NetShelter SX enclosures and third-party racks
Power
Maximum power
11500 W
Nominal input voltage
400 V
Nominal output voltage
230 V
Output voltage
230 V
Power protection features
Overload
Maximum current
16 A
Maximum total current draw per phase
16 A
Load capacity
11500 VA
Surge protection
Yes
AC input frequency
50 - 60 Hz
Number of phases
3
Certificates
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
-5 - 60 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
23 - 140 °F
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Weight & dimensions
Weight
7.2 kg
Width
56 mm
Depth
75 mm
Height
1490 mm
Package width
208 mm
Package depth
116 mm
Package height
1720 mm
Package weight
9.2 kg
Packaging data
Package width
208 mm
Package depth
116 mm
Package height
1720 mm
Package weight
9.2 kg
Technical details
Total carbon footprint (kg of CO2e)
2894.37
Compliance certificates
RoHS
Security
Security algorithms
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection
Yes
Logistics data
Total carbon footprint (kg of CO2e)
2894.37
APC NetShelter Rack PDU Advanced, Switched, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 42 Outlets, IEC309
| Length | 20.8 cm |
| Width | 11.6 cm |
| Height | 172 cm |
| Weight | 9.200000 kgs |
