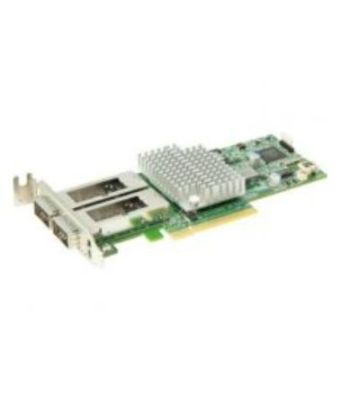

Supermicro AOC-S40G-i2Q: Standard LP 40GbE with 2 QSFP ports, Intel XL710
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Internal
Yes
Fiber ports quantity
2
Fiber optic connector
QSFP+
Interface
Fiber
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Maximum data transfer rate
40000 Mbit/s
Network
Chipset
Intel® XL710
VLAN tagging
Yes
Ethernet interface type
40 Gigabit Ethernet
Load balancing system
Yes
iSCSI support
Yes
Ethernet LAN
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad
Ethernet LAN data rates
40000 Mbit/s
Maximum data transfer rate
40000 Mbit/s
Flow control support
Yes
Technical details
Number of VLANs
4096
Harmonized System (HS) code
85176990
Compliance certificates
RoHS
Design
Chipset
Intel® XL710
Internal
Yes
Software
Linux operating systems supported
Yes
Other operating systems supported
FreeBSD, VMware ESX/ESXi 5.1
Power
Power consumption (typical)
4.9 W
System requirements
Server operating systems supported
Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2
Linux operating systems supported
Yes
Other operating systems supported
FreeBSD, VMware ESX/ESXi 5.1
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Weight & dimensions
Width
149.9 mm
Height
69 mm
Performance
Server operating systems supported
Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2
Linux operating systems supported
Yes
Other operating systems supported
FreeBSD, VMware ESX/ESXi 5.1
Number of VLANs
4096
Other features
Chipset
Intel® XL710
Number of VLANs
4096
Flow control support
Yes
Harmonized System (HS) code
85176990
Logistics data
Harmonized System (HS) code
85176990
Supermicro AOC-S40G-i2Q: Standard LP 40GbE with 2 QSFP ports, Intel XL710
