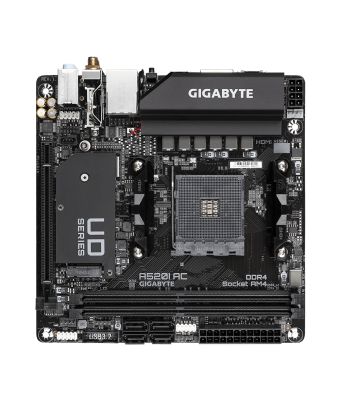

Gigabyte A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
1
Total number of SATA connectors
4
Front panel connector
Yes
Audio connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
Power fan connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Number of displays supported
3
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
Supported processor sockets
Socket AM4
Serial port headers
1
PC health monitoring
Fan, Temperature, Voltage
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
mini ITX
Component for
PC
Total number of SATA connectors
4
Maximum internal memory supported by processor
64 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
RAID levels
0, 1, 10
Supported processor sockets
Socket AM4
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Maximum internal memory supported by processor
64 GB
Compatible processor series
3rd Generation AMD Ryzen 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Supported processor sockets
Socket AM4
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory
64 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
5300 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
Number of storage drives supported
5
Graphics
Number of displays supported
3
Parallel processing technology support
Not supported
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
DisplayPort version
1.4
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
Headphone outputs
3
HDMI version
2.1
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet interface type
Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
4.2
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
Supported processor sockets
Socket AM4
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Audio chip
Realtek ALC887
Product colour
Black
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
DirectX version
12.0
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Width
170 mm
Depth
170 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Batteries included
Yes
Other features
Height
35 mm
Gigabyte A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1
