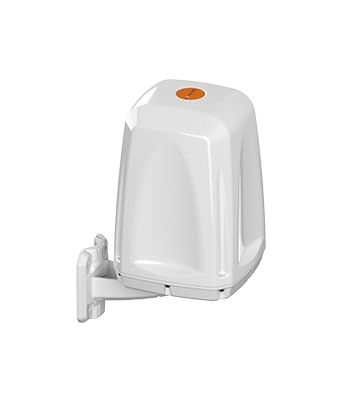

Poynting EPNT-4 network antenna Omni-directional antenna SMA 21 dBi
|
In Stock
€204.82
€243.74 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Performance
Antenna gain level (max)
21 dBi
Frequency band
0.617 - 4.2 GHz
Impedance
50 Ω
Features
Ultraviolet (UV) resistant
Yes
Survival wind speed
220 km/h
Protection features
Dust resistant, Water resistant
Maximum cable loss with connectors
0.71 dB
International Protection (IP) code
IP67
Connector gender
Male
Antenna type
Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)
3:01
Purpose
Indoor & outdoor
Power handling
10 W
Mounting
Wall/Pole
Product colour
White
Cable type
RTK-031
Cable length
0.15 m
Antenna connector type
SMA
Antenna gain level (max)
21 dBi
Frequency band
0.617 - 4.2 GHz
Impedance
50 Ω
Certification
MIL-STD 810G/ASTM B117
Power
Power source type
DC
Input voltage
2.7 - 3.3 V
Certificates
Certification
MIL-STD 810G/ASTM B117
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Operational conditions
Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Weight
1.19 kg
Width
238 mm
Depth
182 mm
Height
351 mm
Package width
280 mm
Package depth
200 mm
Package height
405 mm
Package weight
2.21 kg
Packaging data
Package width
280 mm
Package depth
200 mm
Package height
405 mm
Package weight
2.21 kg
Technical details
Antenna gain level (max)
21 dBi
Frequency band
0.617 - 4.2 GHz
Antenna type
Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)
3:01
Purpose
Indoor & outdoor
Power handling
10 W
Mounting
Wall/Pole
Impedance
50 Ω
Cable type
RTK-031
Cable length
0.15 m
Antenna connector type
SMA
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Colour
Product colour
White
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Quantity per pack
1 pc(s)
Poynting EPNT-4 network antenna Omni-directional antenna SMA 21 dBi
| Length | 20 cm |
| Width | 28 cm |
| Height | 40.5 cm |
| Weight | 2.210000 kgs |
