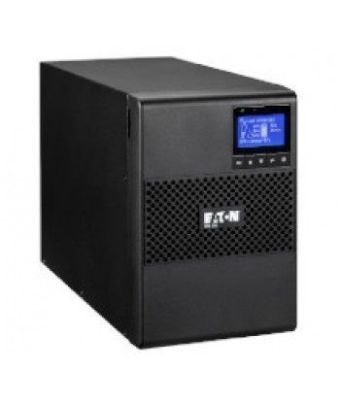

Eaton 9SX700I UPS Double-conversion (Online) 700 VA 630 W 6 AC outlet(s)
|
In Stock Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Specifications
Power
Output power
630 W
Input operation voltage (min)
120 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Power factor
0.9
Output power capacity
700 VA
ECO mode
No
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of output phases
1
Number of input phases
1
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of output phases
1
Number of input phases
1
Output power
630 W
Input operation voltage (min)
120 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Power factor
0.9
Noise level
40 dB
Output power capacity
700 VA
ECO mode
No
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
AC outlets quantity
6 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
14 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Form factor
Mini Tower
Product colour
Black
Safety
IEC/EN 62040-1 UL 1778 CSA 22.2
Display
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
11.5 kg
Width
160 mm
Height
252 mm
Depth
357 mm
Packaging data
Bundled software
Intelligent Power Software suite
Management card included
No
Other features
Input connection type
IEC C14
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Bundled software
Intelligent Power Software suite
Eaton 9SX700I UPS Double-conversion (Online) 700 VA 630 W 6 AC outlet(s)
| Length | 35.70 cm |
| Width | 16.00 cm |
| Height | 25.20 cm |
| Weight | 11.500000 kgs |
