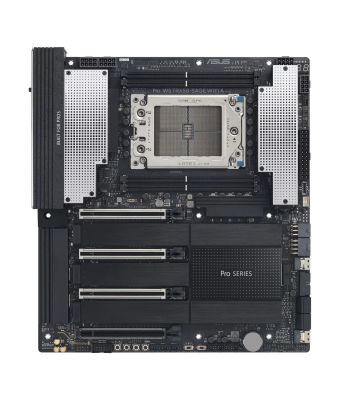

ASUS PRO WS TRX50-SAGE WIFI A AMD TRX50 Socket sTR5 CEB
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III, SlimSAS
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
mSATA ports quantity
0
TPM connector
Yes
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of COM connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
1
Number of temperature sensor headers
1
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
Supported processor sockets
Socket sTR5
Parallel processing technology support
Not supported
On-board graphics card
No
Motherboard form factor
CEB
Component for
Workstation
Audio
Audio output channels
5.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
RAID levels
0, 1, 5, 10
Supported processor sockets
Socket sTR5
Audio output channels
5.1 channels
Motherboard form factor
CEB
Component for
Workstation
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Supported processor sockets
Socket sTR5
Processor socket
Socket sTR5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC Ñompatibility
ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III, SlimSAS
RAID levels
0, 1, 5, 10
Number of storage drives supported
10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
1
WiFi-AP antenna jack
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
0
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
0
DisplayPorts quantity
2
USB4 Gen 3x2 ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
LAN controller
Intel I226-LM
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
Supported processor sockets
Socket sTR5
Audio output channels
5.1 channels
Motherboard form factor
CEB
Component for
Workstation
Audio chip
Realtek ALC1220P
Product colour
Aluminium, Black
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
3
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2580
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
5.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
320 mm
Package depth
380 mm
Package height
100 mm
Package weight
4.85 kg
Software
Windows operating systems supported
Windows 11
Weight & dimensions
Package width
320 mm
Package depth
380 mm
Package height
100 mm
Package weight
4.85 kg
Width
305 mm
Depth
280 mm
Packaging content
Cables included
DisplayPort, SATA
Antenna included
Yes
Other features
Package width
320 mm
Package depth
380 mm
Package height
100 mm
Package weight
4.85 kg
mSATA ports quantity
0
ASUS PRO WS TRX50-SAGE WIFI A AMD TRX50 Socket sTR5 CEB
| Length | 32 cm |
| Width | 38 cm |
| Height | 10 cm |
| Weight | 4.850000 kgs |
