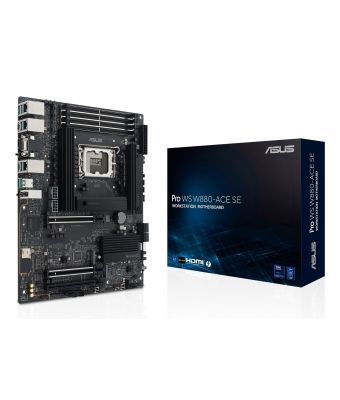

ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
5
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Integrated SAS ports
1
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
2
Number of water pump connectors
1
Number of temperature sensor headers
1
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel W880
Supported processor sockets
Intel LGA1851
Parallel processing technology support
Not supported
HDMI version
2.1
Cooling type
Passive
Motherboard form factor
ATX
Component for
Workstation
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel W880
RAID levels
0, 1, 5, 10
Supported processor sockets
Intel LGA1851
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
Workstation
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
Intel LGA1851
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
256 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
9066 MHz
ECC Ñompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
3840 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
2.1
USB 2.0 ports quantity
0
VGA (D-Sub) ports quantity
1
Thunderbolt ports quantity
1
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
3
DVI-D ports quantity
0
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel W880
Supported processor sockets
Intel LGA1851
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
Workstation
Audio chip
Realtek ALC1220P
Product colour
Grey
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Power
Power source type
ATX
Video
Maximum resolution
3840 x 2160 pixels
Software
Windows operating systems supported
Windows 10 x64, Windows 11
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX
| Width | 30.5 cm |
| Height | ts_dimensions_length=24.4 cm |
| Weight | 1.000000 kgs |
