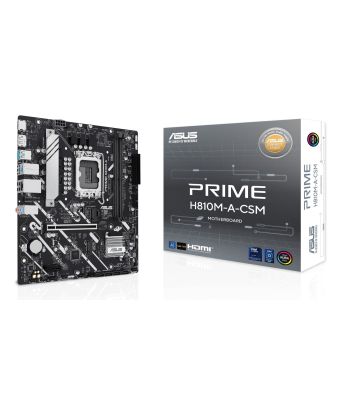

MB ASUS PRIME H810M-A-CSM (Intel,LGA1851,DDR5,mATX)
|
In Stock
€120.88
€143.85 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
2
Number of M.2 (E) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel connector
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
mSATA ports quantity
0
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
3
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H810
Supported processor sockets
LGA 1851
Parallel processing technology support
Not supported
On-board graphics card
No
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H810
Supported processor sockets
LGA 1851
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
6400 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Number of storage drives supported
6
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
1.4
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
0
PS/2 ports quantity
1
Microphone in
Yes
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Intel I219V
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H810
Supported processor sockets
LGA 1851
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Product colour
Black
Expansion slots
Number of M.2 (M) slots
2
Number of M.2 (E) slots
1
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Power
Power source type
ATX
Packaging data
Package width
270 mm
Package depth
263 mm
Package height
51.5 mm
Package weight
782 g
Software
Windows operating systems supported
Windows 10 x64, Windows 11
Weight & dimensions
Height
37 mm
Package width
270 mm
Package depth
263 mm
Package height
51.5 mm
Package weight
782 g
Weight
534 g
Width
244 mm
Depth
222 mm
Other features
Number of M.2 (E) slots
1
Height
37 mm
Package width
270 mm
Package depth
263 mm
Package height
51.5 mm
Package weight
782 g
mSATA ports quantity
0
Weight
534 g
PCI Express x1 (Gen 4.x) slots
1
MB ASUS PRIME H810M-A-CSM (Intel,LGA1851,DDR5,mATX)
| Length | 26.3 cm |
| Width | 27 cm |
| Height | 5.15 cm |
| Weight | 0.780000 kgs |
