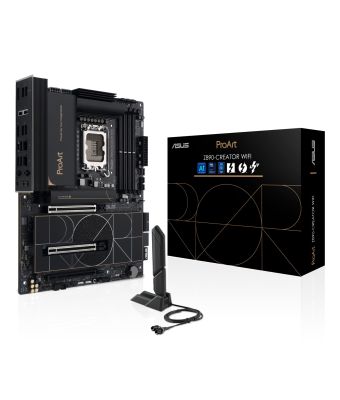

MB ASUS PROART Z890-CREATOR WIFI (Intel,1851,DDR5,ATX)
|
In Stock
€435.57
€518.33 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
5
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
5
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of water pump connectors
1
Number of temperature sensor headers
1
Number of RGB LED pin headers
3
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Supported processor sockets
LGA 1851
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1851
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
9066 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
9066 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
9
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
7680 x 4320 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
2.1
USB 2.0 ports quantity
1
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Thunderbolt ports quantity
3
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
0
DisplayPorts quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Power source type
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Supported processor sockets
LGA 1851
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1220P
Product colour
Black
Expansion slots
Number of M.2 (M) slots
5
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Power
Power source type
ATX
Video
Maximum resolution
7680 x 4320 pixels
Packaging data
Package width
356 mm
Package depth
281 mm
Package height
244 mm
Package weight
2.35 kg
Weight & dimensions
Package width
356 mm
Package depth
281 mm
Package height
244 mm
Package weight
2.35 kg
Weight
1.97 kg
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Antenna included
Yes
Other features
Package width
356 mm
Package depth
281 mm
Package height
244 mm
Package weight
2.35 kg
Weight
1.97 kg
MB ASUS PROART Z890-CREATOR WIFI (Intel,1851,DDR5,ATX)
| Length | 28.1 cm |
| Width | 35.6 cm |
| Height | 24.4 cm |
| Weight | 2.350000 kgs |
