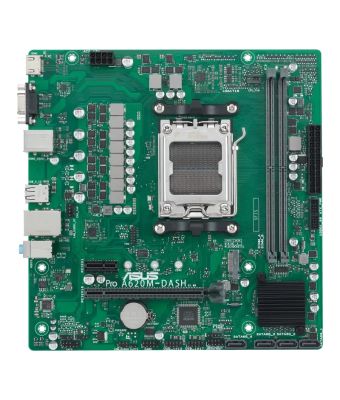

ASUS MB A620M-DASH-SCM PRO AM5 MATX DDR5
|
In Stock
€117.33
€139.62 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD A620
Supported processor sockets
Socket AM5
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD A620
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Maximum internal memory
96 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
7200 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
5
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek 8111EPV
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD A620
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
280 mm
Package depth
265 mm
Package height
71 mm
Software
Windows operating systems supported
Windows 10 x64, Windows 11
Weight & dimensions
Package width
280 mm
Package depth
265 mm
Package height
71 mm
Width
226 mm
Depth
221 mm
Packaging content
Cables included
SATA
Other features
Package width
280 mm
Package depth
265 mm
Package height
71 mm
ASUS MB A620M-DASH-SCM PRO AM5 MATX DDR5
| Length | 26.5 cm |
| Width | 28 cm |
| Height | 7.1 cm |
| Weight | 1.000000 kgs |
