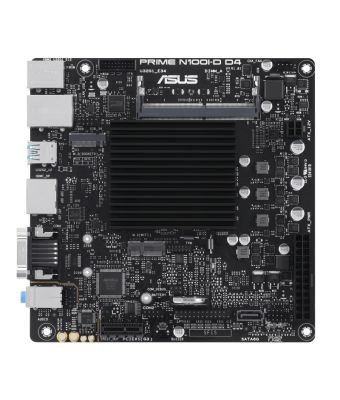

ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX
|
In Stock
€111.31
€132.46 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
1
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Parallel processing technology support
Not supported
Motherboard form factor
mini ITX
Component for
PC
Maximum internal memory supported by processor
16 GB
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
1
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Processor cores
4
Processor model
N100
Maximum internal memory supported by processor
16 GB
Compatible processor series
Intel Processor N
Processor socket
NA (integrated CPU)
Memory
Number of memory slots
1
Memory slots type
SO-DIMM
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2133,2400,2666,2800,2933,3200 MHz
Maximum internal memory
16 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
3200 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
1
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
2
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
COM ports quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Packaging data
Package width
227 mm
Package depth
185 mm
Package height
60 mm
Package weight
664 g
Software
Windows operating systems supported
Windows 10 x64, Windows 11
Weight & dimensions
Package width
227 mm
Package depth
185 mm
Package height
60 mm
Package weight
664 g
Width
170 mm
Depth
170 mm
Packaging content
Cables included
SATA
Other features
Package width
227 mm
Package depth
185 mm
Package height
60 mm
Package weight
664 g
ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX
| Length | 18.5 cm |
| Width | 22.7 cm |
| Height | 6 cm |
| Weight | 664.000000 kgs |
