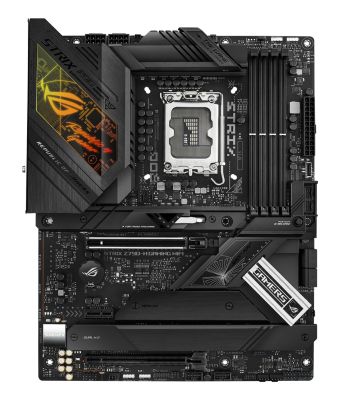

ROG STRIX Z790-H GAMING WIFI
|
Out of Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Power fan connector
Yes
Number of SATA connectors
4
Number of SATA III connectors
0
Number of chassis fan connectors
5
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
On-board graphics card
No
HDMI version
2
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core⢠i3, Intel® Core⢠i5, Intel® Core⢠i7, Intel® Core⢠i9, Intel® Pentium® Gold
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
RAID levels
0, 1, 5, 10
Number of storage drives supported
4
RAID support
Yes
Graphics
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB connector type
USB Type-A
USB 2.0 ports quantity
2
WiFi-AP antenna jack
1
VGA (D-Sub) ports quantity
0
S/PDIF out port
Yes
HDMI version
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Digital audio optical out
5
COM ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Compatible operating systems
Windows® 11, Windows® 10 64-bit
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC S1220A
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10, Windows 11
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Other features
Compatible operating systems
Windows® 11, Windows® 10 64-bit
ROG STRIX Z790-H GAMING WIFI
