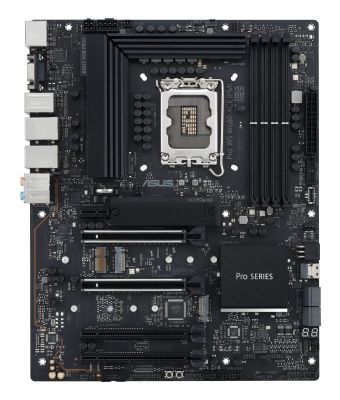

MB ASUS PRO WS W680-ACE IPMI (Intel,1700,DDR5,ATX)
|
In Stock
€454.24
€540.55 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
3
Number of M.2 (E) slots
1
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, NVMe, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Integrated SAS ports
1
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel W680
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
HDMI version
2.1
Cooling type
Passive
Back-to-BIOS button
Yes
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel W680
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core⢠i5, Intel® Core⢠i7, Intel® Core⢠i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
128 GB
Unbuffered memory
Yes
ECC Ñompatibility
ECC & Non-ECC
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, NVMe, SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Microphone in
Yes
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
0
DisplayPorts quantity
1
IPMI LAN (RJ-45) port
Yes
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel W680
Supported processor sockets
LGA 1700
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
3
Number of M.2 (E) slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Back-to-BIOS button
Yes
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10, Windows 11
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA, USB
User guide
Yes
Other features
Number of M.2 (E) slots
1
Back-to-BIOS button
Yes
MB ASUS PRO WS W680-ACE IPMI (Intel,1700,DDR5,ATX)
