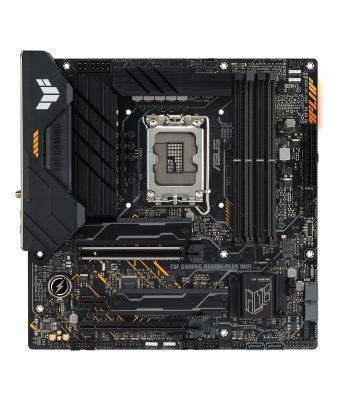

ASUS TUF GAMING B660M-PLUS WIFI Intel B660 LGA 1700 micro ATX
|
In Stock
€164.82
€196.14 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core⢠i3, Intel® Core⢠i5, Intel® Core⢠i7, Intel® Core⢠i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
1.4
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Headphone outputs
5
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Digital audio optical out
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x1 slots
1
PCI Express x16 (Gen 5.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
68 mm
Weight
1.35 kg
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Other features
Height
68 mm
Weight
1.35 kg
