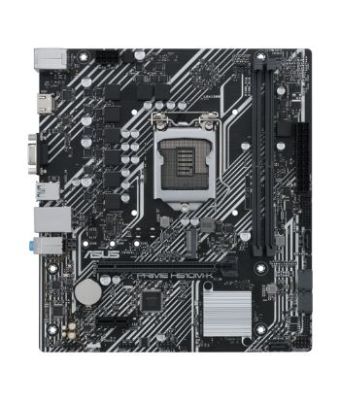

PRIME H510M-K - Motherboard - micro ATX - LGA1200-Sockel - H510 Chipsatz - US

Number of M.2 (M) slots

1

12V power connector

Yes

Supported storage drive interfaces

M.2-PCI Express 3.0-SATA III

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

S/PDIF out connector

Yes

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

1

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

Intel

Motherboard chipset

Intel H510

Supported processor sockets

LGA 1200 (Socket H5)

Parallel processing technology support

Not supported

HDMI version

1.4/2.0

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel H510

Supported processor sockets

LGA 1200 (Socket H5)

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel Pentium G

Supported processor sockets

LGA 1200 (Socket H5)

Processor socket

LGA 1200

Number of memory slots

2

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Non-ECC

Yes

Supported memory clock speeds

2133-2400-2666-2800-2933-3200 MHz

Maximum internal memory

64 GB

Unbuffered memory

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2-PCI Express 3.0-SATA III

Number of storage drives supported

5

Parallel processing technology support

Not supported

Maximum resolution

3840 x 2160 pixels

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB connector type

USB Type-A

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

3

HDMI version

1.4/2.0

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi

No

Wake-on-LAN ready

Yes

LAN controller

Intel® I219-V

Ethernet interface type

Gigabit Ethernet

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel H510

Supported processor sockets

LGA 1200 (Socket H5)

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Audio chip

Realtek ALC887 / Realtek ALC897

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

Maximum resolution

3840 x 2160 pixels

Windows operating systems supported

Windows 10 x64

Drivers included

Yes

Width

226 mm

Depth

203 mm

Drivers included

Yes

Cables included

SATA
