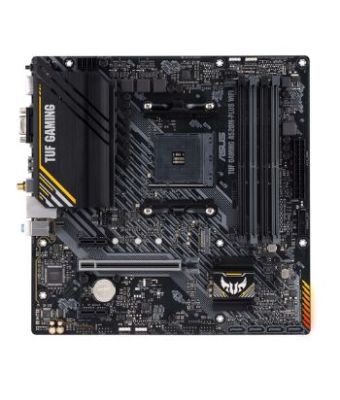

TUF GAMING A520M-PLUS WIFI - Motherboard - micro ATX - Socket AM4 - AMD A520

Number of M.2 (M) slots

1

12V power connector

Yes

Supported storage drive interfaces

M.2-PCI Express 3.0-SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

S/PDIF out connector

Yes

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

2

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

Supported processor sockets

Socket AM4

Parallel processing technology support

Not supported

HDMI version

2.1

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

RAID levels

0-1-10

Supported processor sockets

Socket AM4

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 3- AMD Ryzen 5- AMD Ryzen 7- 3rd Generation AMD Ryzen 9- AMD Ryzen 9 5th Gen

Supported processor sockets

Socket AM4

Processor socket

Socket AM4

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

ECC

Yes

Supported memory clock speeds

2133-2400-2666-2800-3000-3200-3333-3466-3600-3733-3866-4000-4133-4266-4400-4466-4600-4800 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2-PCI Express 3.0-SATA III

RAID levels

0-1-10

Number of storage drives supported

5

Parallel processing technology support

Not supported

Maximum resolution

3840 x 2160 pixels

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

DisplayPort version

1.2

USB connector type

USB Type-A

USB 2.0 ports quantity

2

WiFi-AP antenna jack

1

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

3

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)

Wake-on-LAN ready

Yes

Ethernet interface type

Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.0

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

WLAN controller model

Realtek RTL8821CE

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

Supported processor sockets

Socket AM4

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Audio chip

Realtek ALC887 / Realtek ALC897

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

Maximum resolution

3840 x 2160 pixels

Windows operating systems supported

Windows 10 x64

Drivers included

Yes

Width

244 mm

Depth

244 mm

Drivers included

Yes

Cables included

SATA
