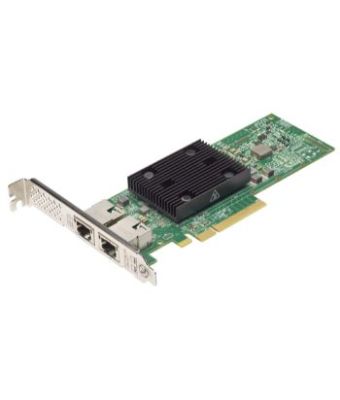

ThinkSystem Broadcom NX-E - Netzwerkadapter

Internal

Yes

Ethernet LAN (RJ-45) ports

2

Interface

Ethernet

Host interface

PCI Express

Connectivity technology

Wired

Maximum data transfer rate

10000 Mbit/s

Product colour

Black, Green

Harmonized System (HS) code

85176990

iSCSI support

Yes

Cabling technology

10GBase-T

Networking standards

IEEE 802.3ab, IEEE 802.3an

Maximum operating distance

100 m

Jumbo frames support

Yes

Ethernet LAN data rates

10,100,1000,10000 Mbit/s

Maximum data transfer rate

10000 Mbit/s

Product colour

Black, Green

Certification

CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge

Internal

Yes

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Width

69 mm

Depth

168 mm

Height

15 mm

Certification

CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge

Harmonized System (HS) code

85176990

Harmonized System (HS) code

85176990
