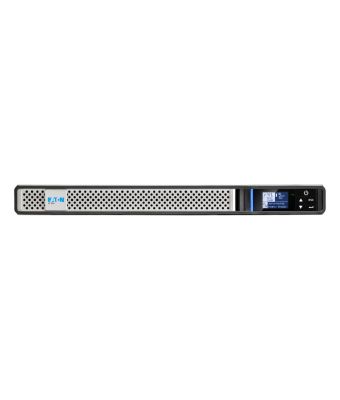

Eaton 5P USV, 850 VA, 680 W, Eingang: C14, Ausgänge: (4)
|
In Stock
€731.13
€870.04 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Power
Output power
680 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
98%
Power factor
0.8
Output power capacity
0.85 kVA
Performance
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Noise level
35 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power
680 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
98%
Power factor
0.8
Noise level
35 dB
Output power capacity
0.85 kVA
Input frequency
47/70 Hz
Heat dissipation
307 BTU/h
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
4 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Serial ports quantity
1
RS-232 ports
1
USB port type
USB Type-B
Network card slot
Yes
Battery
Battery voltage
6 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Number of battery cells
4
Typical backup time at half load
13 min
Hot-swap battery
Yes
Design
Form factor
Rackmount
Product colour
Black, Silver
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Display type
LCD
Network card slot
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Compliance certificates
Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS
Certificates
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS
Packaging content
Quick installation guide
Yes
Cables included
USB cable
Rack mount kit
Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Weight & dimensions
Weight
13.8 kg
Width
438 mm
Height
43.2 mm
Depth
509 mm
Packaging data
Quick installation guide
Yes
Cables included
USB cable
Rack mount kit
Yes
Eaton 5P USV, 850 VA, 680 W, Eingang: C14, Ausgänge: (4)
