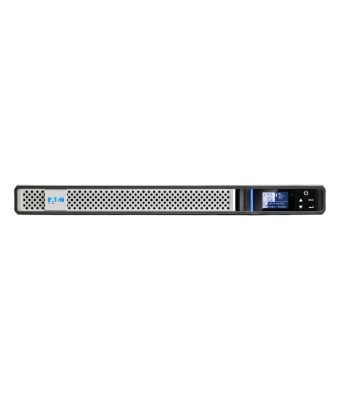

Eaton 5P 1150iR - Gen 2 - USV (Rack - einbaufähig) - Wechselstrom 200/208/220/230/240 V - 920 Watt -
|
In Stock
€724.83
€862.55 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Power
Output power
920 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (max)
240 V
Efficiency
98.20%
Performance
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Noise level
35 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power
920 W
Input operation voltage (min)
150 V
Input operation voltage (max)
294 V
Output operation voltage (max)
240 V
Efficiency
98.20%
Noise level
35 dB
Input frequency
50/60 Hz
Heat dissipation
465 BTU/h
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
6 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Serial ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
4
Battery voltage
6 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Design
Rack capacity
1U
Form factor
Tower
Product colour
Black, Silver
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
14.2 kg
Width
438 mm
Height
43.2 mm
Depth
509 mm
Packaging data
Quick installation guide
Yes
Manual
Yes
Certificates
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Packaging content
Quick installation guide
Yes
Manual
Yes
Eaton 5P 1150iR - Gen 2 - USV (Rack - einbaufähig) - Wechselstrom 200/208/220/230/240 V - 920 Watt -
