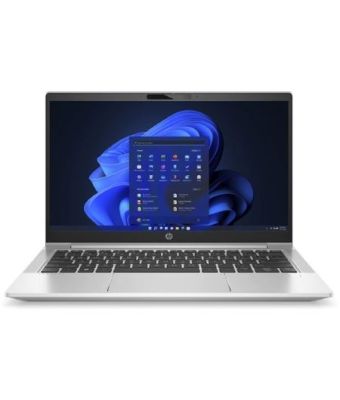

HP EliteBook 800 830 G8 336D2EA

Processor manufacturer

Intel

Processor family

Processor generation

Processor model

i5-1135G7

Processor cores

4

Processor threads

8

Processor boost frequency

4.2 GHz

Processor frequency

2.4 GHz

Processor cache

8 MB

Processor cache type

L3

Configurable TDP-up frequency

2.4 GHz

Configurable TDP-up

28 W

Configurable TDP-down

12 W

Configurable TDP-down frequency

0.9 GHz

Product type

Laptop

Product colour

Silver

Form factor

Clamshell

Market positioning

Premium

No

Country of origin

China

Display diagonal

33.8 cm

Display resolution

1920 x 1080 pixels

Touchscreen

No

HD type

Full HD

Panel type

IPS

Native aspect ratio

16:9

Anti-glare screen

Yes

Display brightness

Display diagonal (metric)

33.8 cm

RGB colour space

NTSC

Colour gamut

45 %

Internal memory

8 GB

Internal memory type

DDR4-SDRAM

Memory clock speed

3200 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

1 x 8 GB

Memory slots

1x SO-DIMM

ECC

No

Total storage capacity

256 GB

Storage media

SSD

Total SSDs capacity

256 GB

Number of SSDs installed

1

SSD capacity

256 GB

SSD interface

NVMe

NVMe

Yes

Optical drive type

No

Card reader integrated

No

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 6 AX201

WLAN controller manufacturer

Intel

Ethernet LAN

No

Bluetooth

Yes

Bluetooth version

5.0

Miracast

Yes

MIMO

Yes

MIMO type

Multi User MIMO

Operating system installed

Windows 10 Pro

Operating system architecture

64-bit

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card model

Intel Iris Xe Graphics

Weight

1.24 kg

Width

307.6 mm

Depth

204.5 mm

Height

17.9 mm

HP speaker type

HP Dual Speakers

HP Connection Optimizer

Yes

HP Support Assistant

Yes

HP front camera

HP Webcam HD IR

HP Security tools

Absolute persistence module; HP DriveLock and Automatic DriveLock; HP Secure Erase; Power-on authentication; Preboot authentication; TPM 2.0 embedded security chip shipped with Windows 10 (Common Criteria EAL4+ Certified); HP Sure Click; HP Sure Sense; Support for chassis padlocks and cable lock devices; HP Sure Start Gen6; HP Sure Run Gen3; HP Sure Recover Gen3; HP Sure Admin; HP BIOSphere Gen6

HP segment

Business

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

HDMI ports quantity

1

HDMI version

2.0b

Combo headphone/mic port

Yes

Pointing device

Clickpad

Numeric keypad

No

Keyboard backlit

Yes

Spill-resistant keyboard

Yes

Input device model

HP Premium keyboard Collaboration

Keyboard special features

Protection against liquid ingress

Battery technology

Lithium-Ion (Li-Ion)

Number of battery cells

3

Battery capacity

53 Wh

Battery weight

204 g

AC adapter power

65 W

USB Type-C charging port

Yes

Audio system

Bang & Olufsen

Number of built-in speakers

2

Built-in microphone

Yes

Number of microphones

3

Front camera

Yes

Front camera signal format

720p

Front camera HD type

HD

Infrared (IR) camera

Yes

Intel Trusted Execution Technology

No

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Stable Image Platform Program (SIPP)

No

Intel Software Guard Extensions (Intel SGX)

No

Idle States

Yes

CPU configuration (max)

1

Embedded options available

No

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Low halogen

Yes

Sustainable technologies and materials

Ocean-bound plastic in speaker enclosure; 35% post-consumer recycled plastic; Low Halogen; Bulk packaging available

Harmonized System (HS) code

84713000

Repairability index

8.4
