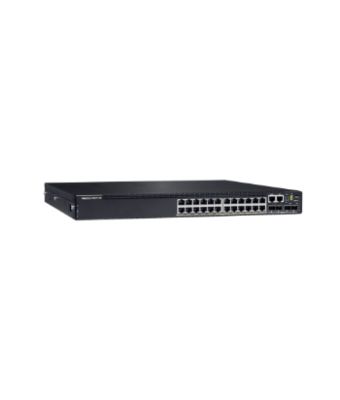

N2224PX-ON 24BT-1/2.5G + 4X25G
|
In Stock
€1050.95
€1250.63 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Multicast support
Yes
Switch type
Managed
Switch layer
L3
Network
IGMP snooping
Yes
Auto-sensing
Yes
Networking standards
IEEE 802.3at, IEEE 802.3bt
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4096
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Data transmission
Number of VLANs
4096
Number of static routes
256
Packet buffer memory
4 MB
MAC address table
32000 entries
Switching capacity
160 Gbit/s
Forwarding rate
667 Mpps
Performance
Packet buffer memory
4 MB
Auto-negotiation
Yes
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Ports & interfaces
QSFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
USB 2.0 ports quantity
1
SFP28 ports quantity
4
Security
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
4 MB
Design
Form factor
1U
Product colour
Black
Rack mounting
Yes
Power
Power supply included
Yes
Power consumption (typical)
1050 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 65 °C
Storage relative humidity (H-H)
0 - 85%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
434.1 mm
Depth
400.1 mm
Height
43.4 mm
Weight
6.67 kg
Logistics data
Harmonized System (HS) code
85176990
N2224PX-ON 24BT-1/2.5G + 4X25G
| Length | 40.01 cm |
| Width | 43.41 cm |
| Height | 4.34 cm |
| Weight | 6.670000 kgs |
