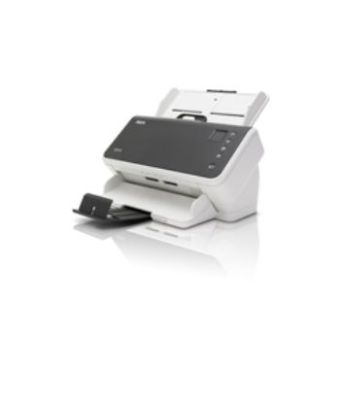

Kodak S2070 ADF scanner 600 x 600 DPI A4 Black, White

Output greyscale depth

8 bit

Selectable background colour

No

Black/white scanning colour modes

Grayscale

Maximum scan size

216 x 3000 mm

Optical scanning resolution

600 x 600 DPI

Colour scanning

Yes

Duplex scanning

Yes

Input colour depth

30 bit

Output colour depth

24 bit

Film scanning

No

Greyscale levels

256

ADF scan speed (b/w- A4)

70 ppm

ADF scan speed (colour- A4)

70 ppm

Duplex ADF scan speed (b/w- A4)

140 ipm

Duplex ADF scan speed (colour- A4)

140 ipm

ADF scan speed (greyscale- A4)

70 ppm

Sensor type

Dual CIS

Light source

RGB LED

Scan file formats

BMP- CSV- DOC- JPG- PDF- PNG- RTF- TIFF- TXT- XLS

Daily duty cycle (max)

7000 pages

Scan to

Cloud- E-mail- E-mail Server- File- Image- OCR- PC- TWAIN- WIA

Built-in display

Yes

Touchscreen

No

Scanner type

ADF scanner

Display diagonal

3.81 cm (1.5")

Display

LCD

Product colour

Black- White

Barcode reader

Yes

Button functions

Cancel- down- Off- On- Scan- Up

Sensor type

Dual CIS

Light source

RGB LED

Scan file formats

BMP- CSV- DOC- JPG- PDF- PNG- RTF- TIFF- TXT- XLS

Daily duty cycle (max)

7000 pages

Scan to

Cloud- E-mail- E-mail Server- File- Image- OCR- PC- TWAIN- WIA

Scan drivers

ISIS-TWAIN-WIA

Processor frequency

1500 MHz

Built-in processor

Yes

Standard input capacity

80 sheets

Auto document feeder (ADF) input capacity

80 sheets

Maximum scan width

21.6 cm

Maximum scan length

3 m

Maximum ISO A-series paper size

A4

Scanning media types supported

Plain paper- Plastic Card- Recycled paper- Thick paper- Thin paper

Maximum scan area (ADF)

216 x 356 mm

Minimum scan area (ADF)

52 x 52 mm

Auto Document Feeder (ADF) media weight

27 - 433 g/m²

Multi feed detection

Yes

Legal

Yes

ISO A-series sizes (A0...A9)

A4

Standard interfaces

USB 3.2 Gen 1 (3.1 Gen 1)

USB port

Yes

USB version

3.2 Gen 2 (3.1 Gen 2)

Windows operating systems supported

Windows 10-Windows 7-Windows 8-Windows 8.1

Bundled software

WINDOWS Bundled software: TWAIN- ISIS- WIA Drivers; Alaris Capture Pro Limited- Smart Touch- LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)

Scan drivers

ISIS-TWAIN-WIA

Drivers included

Yes

Power consumption (typical)

36 W

Power consumption (standby)

3 W

Power consumption (off)

0.5 W

Input voltage

100-240 V

Power supply type

AC

Power supply

36 W

Power consumption (PowerSave)

3 W

AC input frequency

50 - 60 Hz

Maximum scan width

21.6 cm

Black/white scanning colour modes

Grayscale

Button functions

Cancel- down- Off- On- Scan- Up

Scanner type

ADF scanner

Product colour

Black- White

Downloadable software

Capture Pro Limited Edition- Smart Touch

Scan technology

Dual CIS

PC connection

USB 3.2 Gen 1 (3.1 Gen 1)

Linear (1D) barcodes supported

Codabar-Code 128-Code 3 of 9-EAN-13-EAN-8-PDF417-U.P.C.

Relative humidity

15 - 80%

Maximum paper size

216 x 3000 mm

Power

36 W

Sustainability certificates

ENERGY STAR

Processor frequency

1500 MHz

Built-in processor

Yes

Touchscreen

No

Display diagonal

3.81 cm (1.5")

Display

LCD

Legal

Yes

ISO A-series sizes (A0...A9)

A4

Windows operating systems supported

Windows 10-Windows 7-Windows 8-Windows 8.1

Minimum RAM

4000 MB

Minimum processor

INTEL CORE i3 - 4150 processor

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

15 - 80%

Operating temperature (T-T)

50 - 95 °F

Certification

EPEAT Registered ENERGY STAR Qualified AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark)- CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark)- Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B)- China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark)- EN55022:2010 ITE Emissions (Class B)- EN55024:2010 ITE Immunity (CE mark)- EN60950-1:2006 +A1-+A11-+A12 (TUV GS mark)- IEC60950-1:2005 +A1- Taiwan CNS 13438:2006 (Class B); CNS 14336-1 (BSMI mark)- UL 60950-1:2007 R12.11 (TUV US mark)- CFR 47 Part 15 (FCC Class B)- Argentina S mark

Width

312 mm

Depth

204 mm

Height

182.5 mm

Weight

3.3 kg

Cables included

AC- USB

Stacker

Yes

ADF paper chute

Yes

Bundled software

WINDOWS Bundled software: TWAIN- ISIS- WIA Drivers; Alaris Capture Pro Limited- Smart Touch- LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)

Drivers included

Yes

Scanner type

ADF scanner

Downloadable software

Capture Pro Limited Edition- Smart Touch
