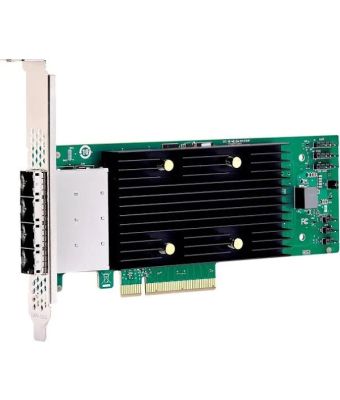

Broadcom HBA 9600-16e - Speicher-Controller - 16 Sender/Kanal - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (

Internal

Yes

Output interface

SAS, SATA

Host interface

PCIe

External mini-SAS HD ports

4

NVMe

Yes

Expansion card form factor

Full-height / Low-profile

Expansion card standard

PCIe 4.0

Data transfer rate (max)

22.5 Gbit/s

Quantity per pack

1 pc(s)

Sustainability compliance

Yes

Warranty period

3 year(s)

Compliance certificates

RoHS, WEEE

Data transfer rate (max)

22.5 Gbit/s

Product colour

Black, Green, Silver

NVMe

Yes

S.M.A.R.T. support

Yes

Certification

Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)

Product colour

Black, Green, Silver

Mean time between failures (MTBF)

5000000 h

Internal

Yes

Product colour

Black, Green, Silver

Certification

Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)

Data transfer rate (max)

22.5 Gbit/s

S.M.A.R.T. support

Yes

NVMe

Yes

Power consumption (typical)

17 W

Operating temperature (T-T)

0 - 55 °C

Operating relative humidity (H-H)

5 - 90%

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Server operating systems supported

SUSE Linux Enterprise Server

Other operating systems supported

VMware vSphere ESXi

Width

167.5 mm

Depth

68.8 mm

Mounting brackets included

Yes

Quantity per pack

1 pc(s)

Quantity per pack

1 pc(s)

Mounting brackets included

Yes
