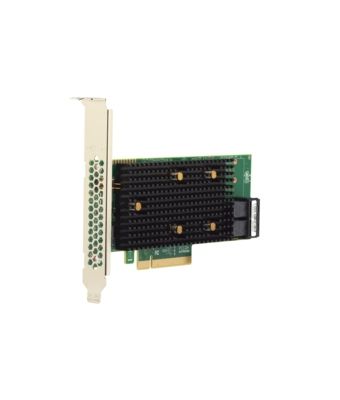

Broadcom MegaRAID SAS 9440-8i 8-Port intern
|
In Stock
€185.11
€220.28 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Supported storage drive interfaces
SAS, Serial ATA
Host interface
PCI Express x8
PCI Express slots version
3.1
Internal mini-SAS ports
2
Performance
RAID levels
0, 1, 5, 6, 10, 50, 60
SSD support
Yes
S.M.A.R.T. support
Yes
RAID Level Migration
Yes
Online Capacity Expansion
Yes
Number of devices supported
63
Mean time between failures (MTBF)
3000000 h
Form factor
Low Profile MD2 Card
Data transfer rate
12 Gbit/s
Certification
AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE
Harmonized System (HS) code
84733080
Data transmission
Data transfer rate
12 Gbit/s
Technical details
RAID levels
0, 1, 5, 6, 10, 50, 60
SSD support
Yes
S.M.A.R.T. support
Yes
RAID Level Migration
Yes
Ports quantity
8
Online Capacity Expansion
Yes
Number of devices supported
63
Form factor
Low Profile MD2 Card
Connector(s)
2 x Mini-SAS HD x4 SFF-8643
Design
Form factor
Low Profile MD2 Card
Endurance
Mean time between failures (MTBF)
3000000 h
Power
Voltage
3.3, 12 V
Certificates
Certification
AS/NZS CISPR 22, ICES -003, Class B, EN55022/EN55024, VCCI V-3, RRA no 2013-24 & 25, RoHS, EN/IEC/UL 60950, CNS 13438, USA (FCC 47 CFR part 15 Subpart B, class B, WEEE
System requirements
Windows operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
10 - 55 °C
Storage temperature (T-T)
-45 - 105 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
155.7 mm
Depth
68.9 mm
Logistics data
Harmonized System (HS) code
84733080
Other features
Ports quantity
8
Connector(s)
2 x Mini-SAS HD x4 SFF-8643
Broadcom MegaRAID SAS 9440-8i 8-Port intern
